GDFR-400X3 Three Lines High Speed T-Shirt Bag Making Machine - GDFR-400X3 High Speed Three Lines T-Shirt Bag Making Machine

Watch The Video

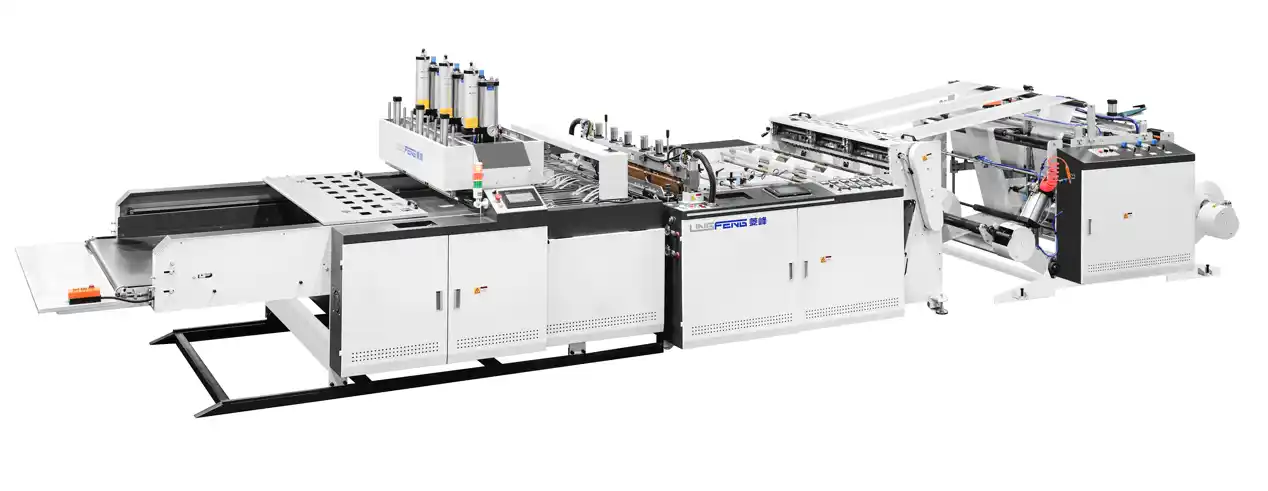

GDFR-400X3 Three Lines High Speed T-Shirt Bag Making Machine

The GDFR-400X3 is a multi-lane, high-speed fully automatic T-shirt bag making machine designed for maximized mass production. By running 3 production lines simultaneously, it significantly multiplies your output while minimizing factory floor space and labor costs. Equipped with our patented hot-cutting and hot-sealing technology, it delivers flawless, heavy-duty seals on traditional films (HDPE/LDPE) as well as the latest biodegradable materials (PLA/PBAT).

Max. Bag Width

320mmX3

Producing Length

300-700mm

Max. Producing Speed

280pcs/min

Main Technical Parameters

Model	GDFR-400X3
Suitable Materials	HDPE, LDPE, LLDPE, PP, PBAT+PLA
Max. Bag Width	320mmX3
Producing Length	300-700mm
Max. Producing Speed	280pcs/min
Film Thickness	0.010-0.040mm
Total Power	13kW
Max. Upload Film Roll Size	800mm

Performance and Features

Our advanced 3-line vest handle T-shirt bag making machine is the ultimate solution for high-volume packaging manufacturers looking to optimize efficiency.

Triple Output, Single Footprint: The 3-lane independent layout allows you to produce up to 840 bags per minute in total, drastically cutting down energy consumption and labor costs per bag compared to standard single-line machines.
Patented Eco-Friendly Sealing: Features an exclusive patented hot-cutting and synchronous sealing system optimized for both standard poly films and tricky biodegradable materials (PLA+PBAT), ensuring zero tearing or weak bottom seals.
Independent Tension & Alignment: Each lane operates with its own precision micro-tracking system and auto-tension controls, allowing stable feeding even if the film rolls vary slightly in quality.
Smart "Rocking" Anti-Stick System: The heavy-duty collection pile integrates an automated rocking system that prevents fresh hot-sealed bag bottoms from sticking together during high-speed stacking.
All-in-One Inline Automation: Fully automated process from triple-roll unwinding, photo-cell color mark tracking, pneumatic auto-punching, to final counting and folding with automatic waste film trim collection.
Global Multi-Language HMI: User-friendly PLC touch-screen operating system with built-in support for English, Spanish, Arabic, Russian, Turkish, and Chinese.

Manufacturing Process

From raw film to finished T-shirt bag — unwinding, hot sealing, die cutting and folding in one line

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

Hot Sealing & Hot Cutting

Heat-seals the bag body and cuts individual bags in one synchronized pass for clean, strong edges.

Die Cut

Punches the vest-style handle opening and trims the bag profile with a precision die.

Folding

Automatically stacks and folds finished bags for neat collection and downstream packing.
