High Speed Bottom Seal Bag Making Machine By Flying Knife System - High Speed Bottom Sealing Bag Making Machine By Flying Knife System

Watch The Video

High Speed Bottom Seal Bag Making Machine By Flying Knife System

The LFFD series is a high-speed bottom seal bag making machine built around a servo-driven flying-knife cut-off and dual-side wire sealing for strong, consistent seal lines. Spanning 1000–1600mm bag width across four models, it handles HDPE, LDPE, and FFS films for heavy-duty, large-format flat bags, with optional multi-line non-printing output and a non-overlapping seal-line feed system.

Max. Bag Width

1000mm

Producing Length

200-2000mm

Max. Producing Speed

80pcs/min

Main Technical Parameters

Model	LFFD-1100	LFFD-1400	LFFD-1600	LFFD-1700
Max. Bag Width	1000 mm	1300 mm	1500 mm	1600 mm
Producing Length	200–2000 mm	200–2500 mm	200–3000 mm	200–3000 mm
Max. Producing Speed	80 pcs/min	70 pcs/min	80 pcs/min	60 pcs/min
Film Thickness	0.010–0.040 mm	0.010–0.040 mm	0.010–0.040 mm	0.010–0.040 mm
Suitable Materials	HDPE / LDPE / FFS	HDPE / LDPE / FFS	HDPE / LDPE / FFS	HDPE / LDPE / FFS
Total Power	8 kW	11 kW	13 kW	14 kW
Max. Film Roll Diameter	800 mm	800 mm	800 mm	800 mm

Performance and Features

The LFFD series uses a servo-driven flying-knife cut-off, so the knife is quick and easy to replace. Sealing is performed by two-sided heating wires to achieve a strong seal line, and the machine runs HDPE, LDPE, and FFS films. It supports multiple production lines for non-printing bags, and the bag-sending design provides a non-overlapping seal-line system (not included on the two-servo-motor series).
Options: surface-friction unwind with auto lift-up unit; twin servo film-feed motors for two-line printed bags; punch unit; V-type sealing; multi-row unwinder with lift-up unit for synchronous multi-roll feeding. Standard features include automatic tension control, an auto pneumatic lift-up unit, and an auto-stop system for film-out detection.

Manufacturing Process

Bottom seal bag production — servo fly-knife sealing and cutting in a continuous 2-stage process

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

Sealing & Fly Cutting

Servo flying-knife bottom seal and cut-off for heavy-duty flat bags at high line speed.

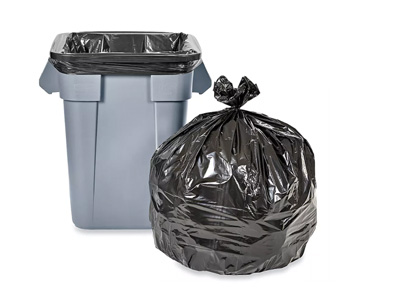

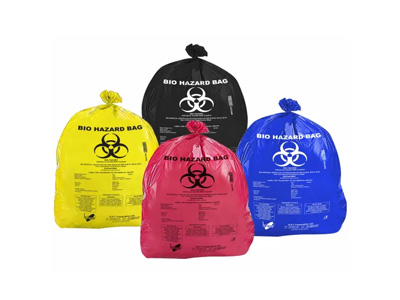

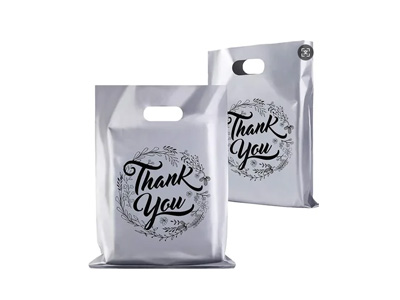

Applications & Industries We Serve

Every Lingfeng plastic bag making machine is built around a real production goal. Below are the most common bag types and industries this equipment serves ?from high-volume retail to specialized, eco-friendly formats. Tell us your application and our engineers will match the right machine configuration.
