Automatic interleave Draw Tape Bag-on-roll Making Machine - Automatic Interleaf Draw Tape Bag-on-roll Making Machine

Watch The Video

Automatic interleave Draw Tape Bag-on-roll Making Machine

This equipment is used for producing interleaf draw tape bag on roll，this kind of bag can be packed as extractive packing.

Max. Bag Width

400-650mm

Producing Length

400-680mm

Max. Producing Speed

40-160pcs/min

Main Technical Parameters

Model	AGGC-800	AGGC-1000	AGGC-1200
Bag Width	400-650mm	500-850mm	500-1000mm
Producing Length	400-680mm	400-880mm	400-1080mm
Max. Producing Speed	40-160pcs/min	40-120pcs/min	30-90pcs/min
Max. Rewinding Width	200mm	300mm	300mm
Max. Rewinding Diameter	150mm	150mm	150mm
Draw Tape Film Width	100mm	100mm	100mm
Draw Tape Film Unwinding Diameter	600mm	600mm	600mm
Film Thickness	HDPE: 0.006-0.040mm LDPE: 0.015-0.050mm	HDPE: 0.006-0.040mm LDPE: 0.015-0.050mm	HDPE: 0.006-0.040mm LDPE: 0.015-0.050mm
Total Power	20kW	20kW	22kW

Performance and Features

This equipment is used for producing interleaf draw tape bag on roll，this kind of bag can be packed as extractive packing. High speed servo-driven system designed to produce polydraw garbage bag-on-roll. With hot air sealing for non-stop and stable sealing line at the top folded area. Servo controlled rewinder for both overlapped and perforated polydraw bag-on-roll functions. Changing between jobs is as simple as flipping a switch.

Dual-Function Servo Rewinder: Switch between Interleaf (Overlapped) bags and Traditional Perforated bags instantly with a simple flip of a switch. One machine, two major product lines!
Non-Stop Hot Air Sealing: Utilizes a state-of-the-art continuous hot air sealing system at the top folded draw-tape area. This guarantees ultra-strong, leak-proof, and aesthetically flawless seals without slowing down production speed.
Full Servo-Driven Precision: High-speed servo motors control the feeding, sealing, folding, and rewinding processes, drastically reducing material waste and downtime.
Biodegradable Film Ready: Fully optimized to run fragile eco-friendly and compostable materials smoothly without stretching or tearing.
Optional Labeling Automation: Can be seamlessly integrated with an automatic labeling machine to wrap finished rolls with tape/labels for a retail-ready presentation.

Manufacturing Process

Interleaf draw tape bag on roll — string attach, seal, fold and interleave rewinding

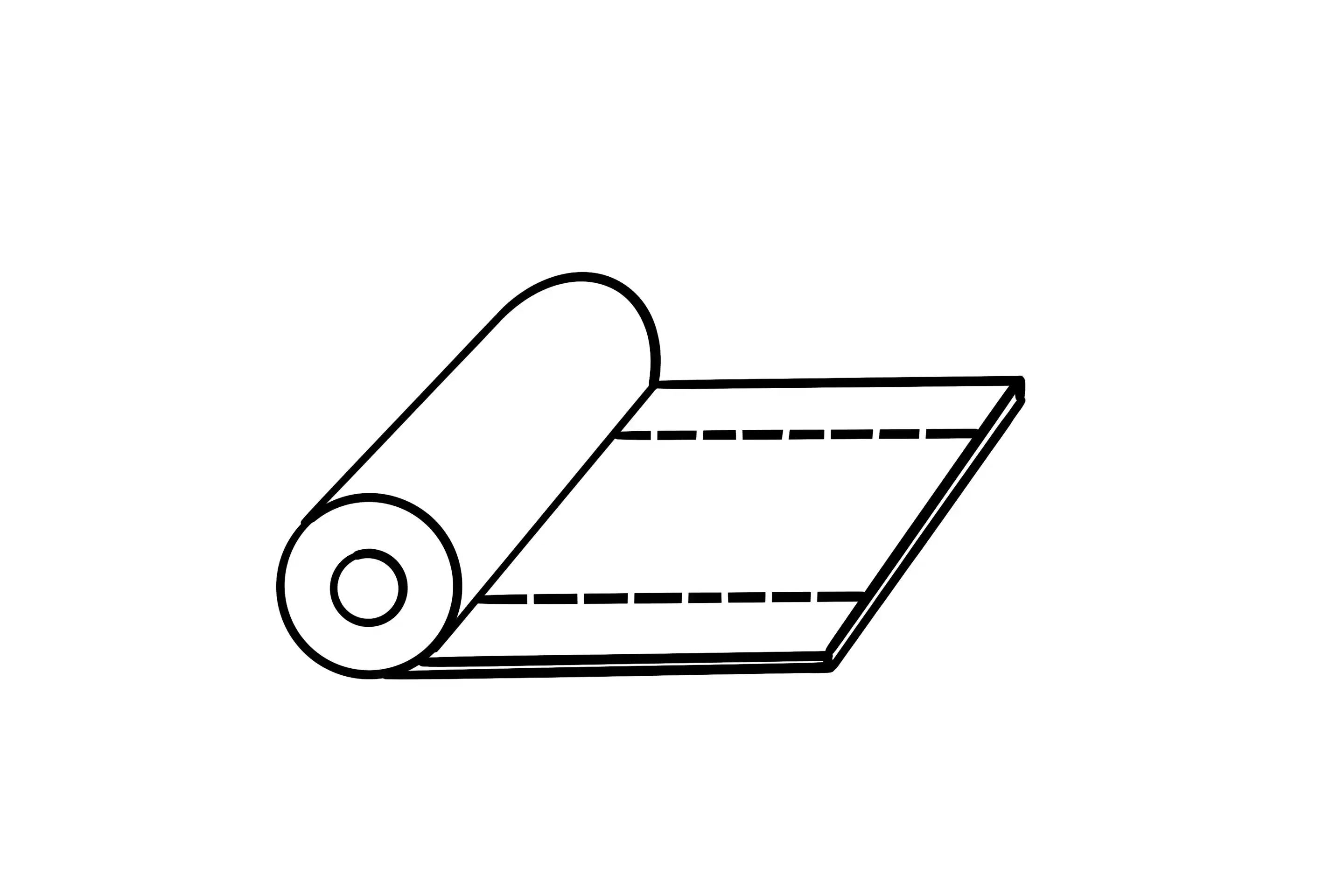

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

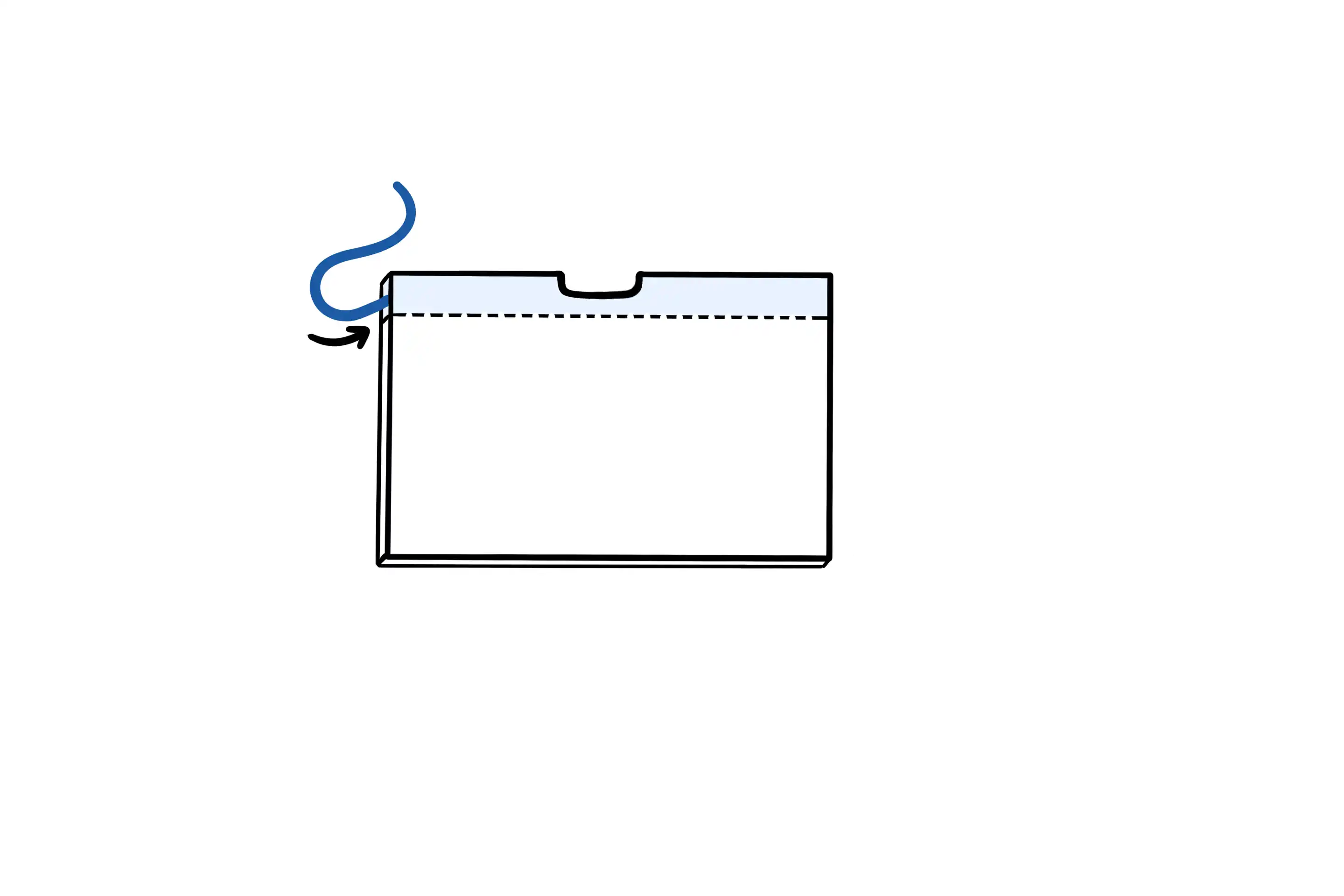

String Attach

Feeds and attaches draw-tape or tying string for drawstring garbage bag rolls.

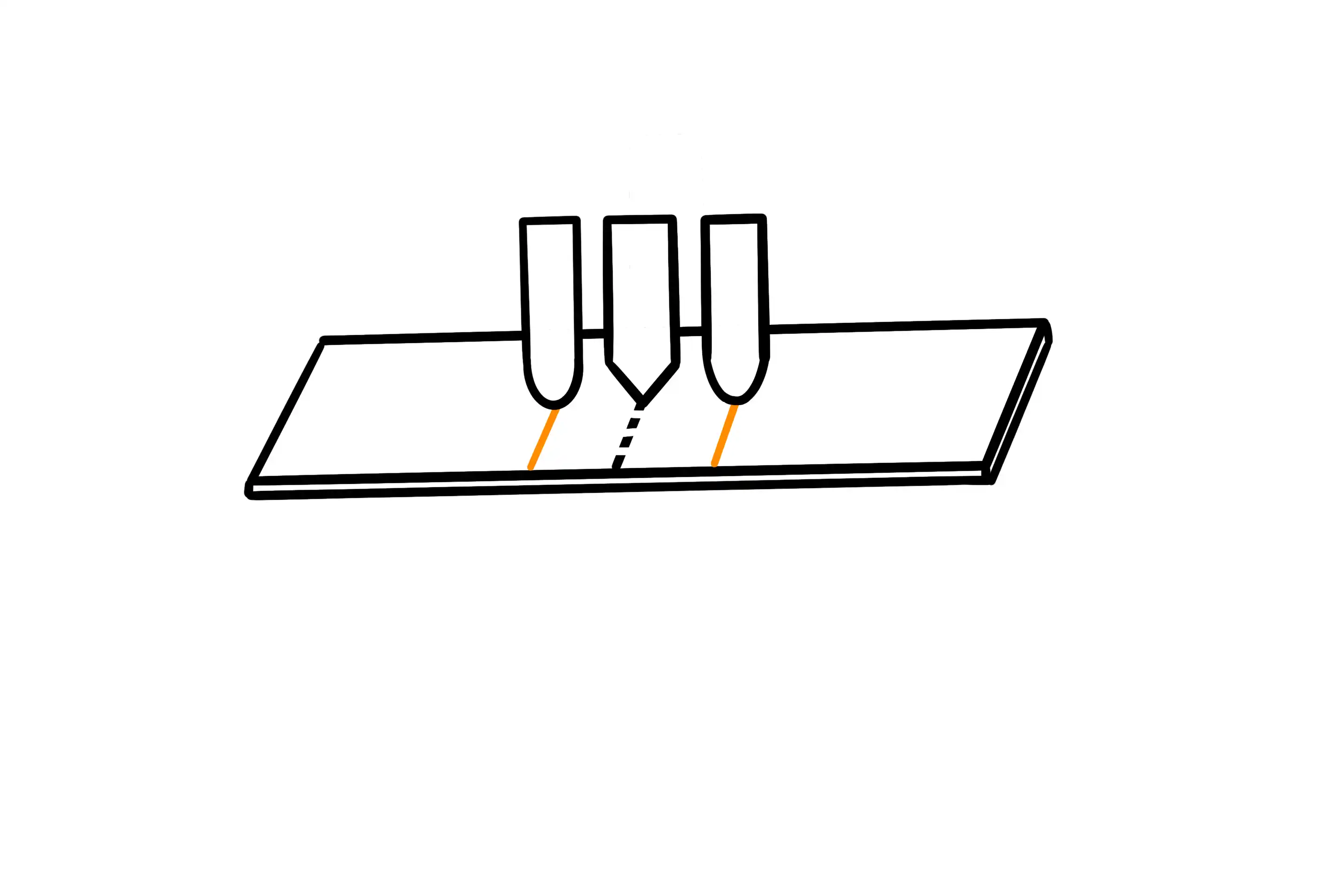

Sealing & Perforation

Bottom-seals each bag and adds perforation between bags for roll or coreless formats.

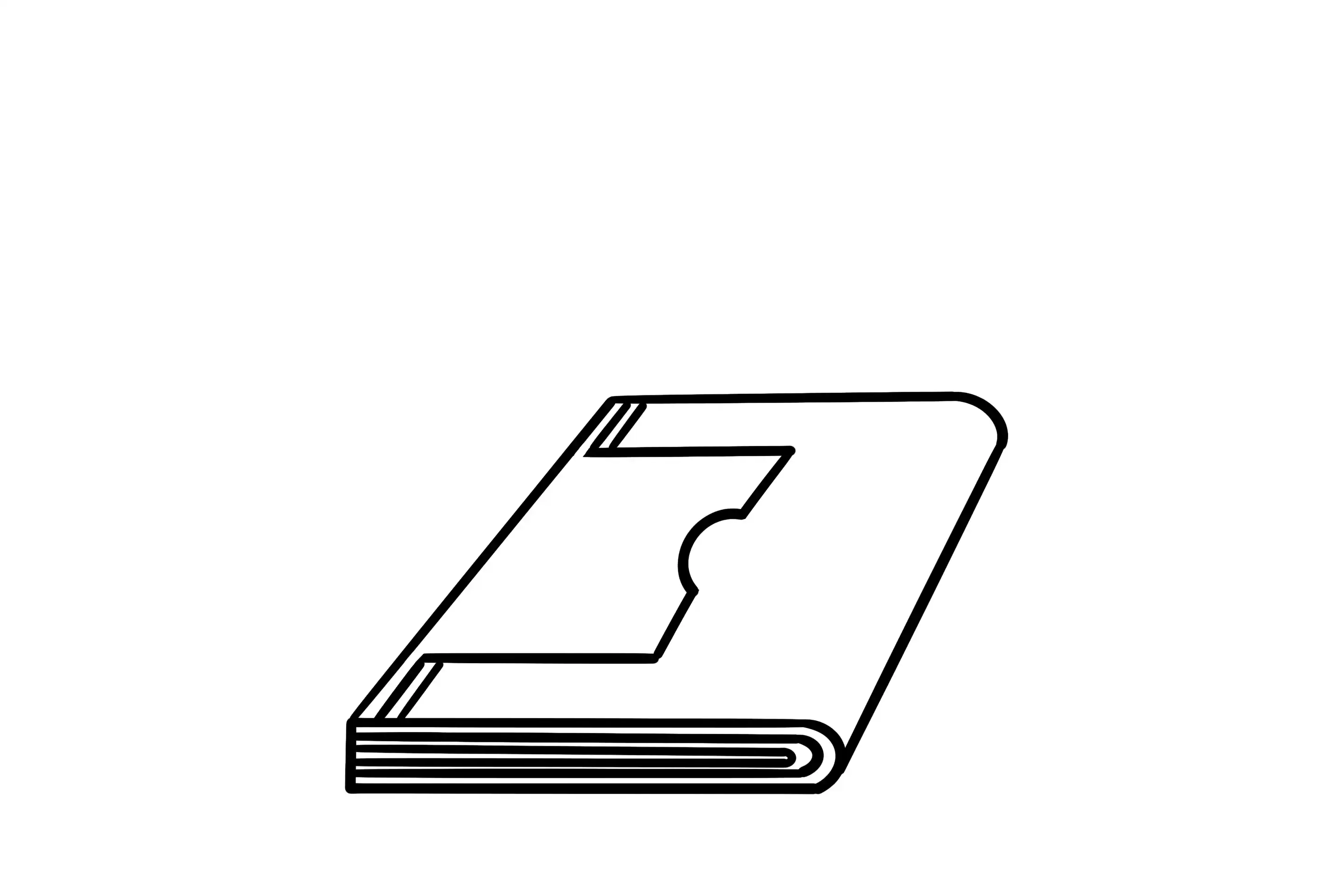

Folding

Automatically stacks and folds finished bags for neat collection and downstream packing.

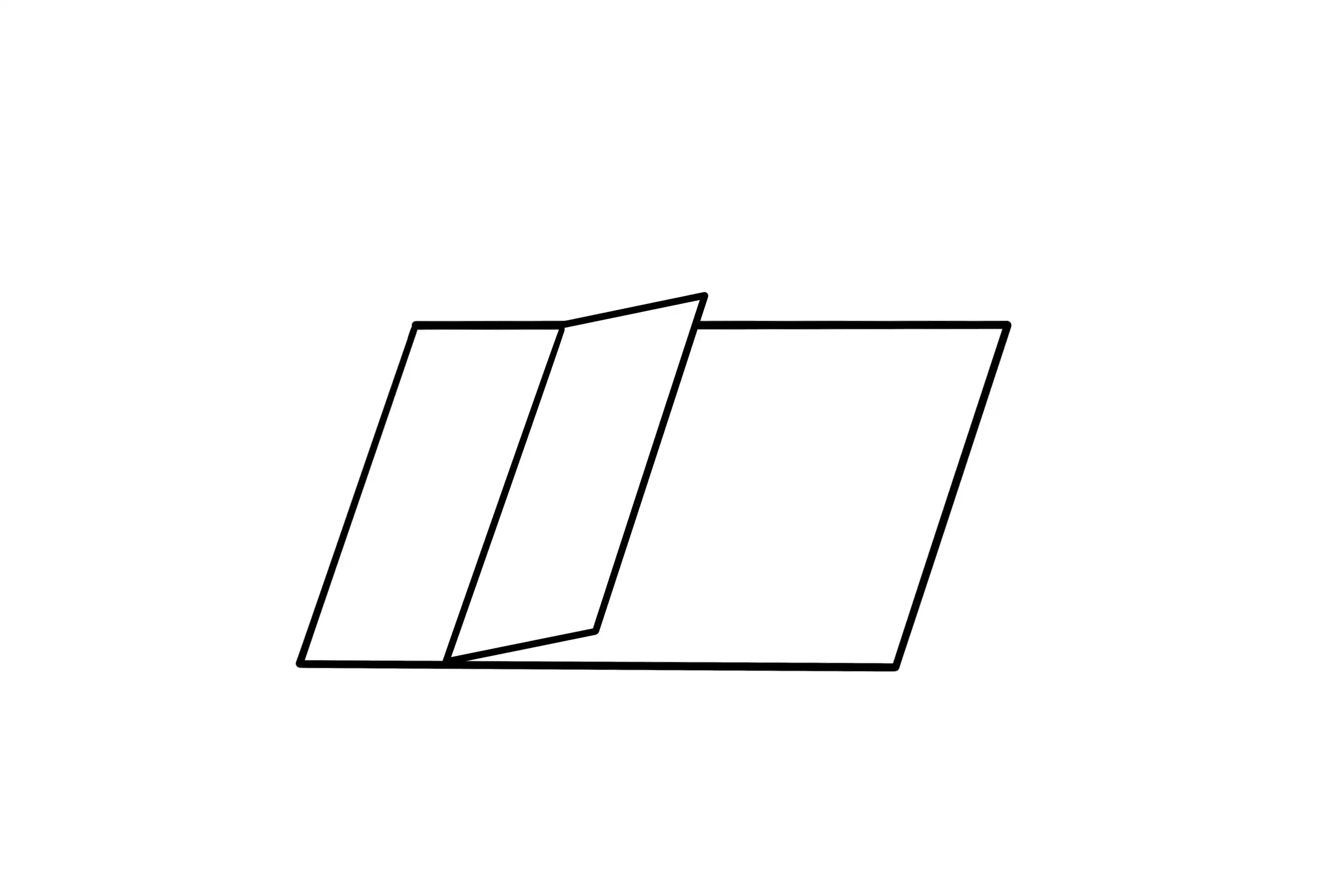

Interleave Rewinding

Rewinds bags onto a core with interleaved leaf paper for extractive-pack delivery.
