GDFR-450X2+ED High-Speed Double-Line T-Shirt Bag Making Machine with EPC -

Watch The Video

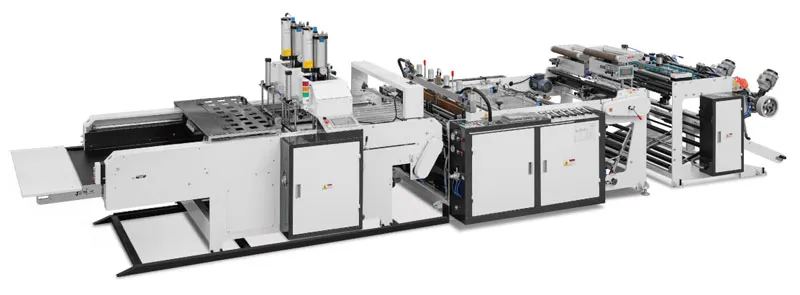

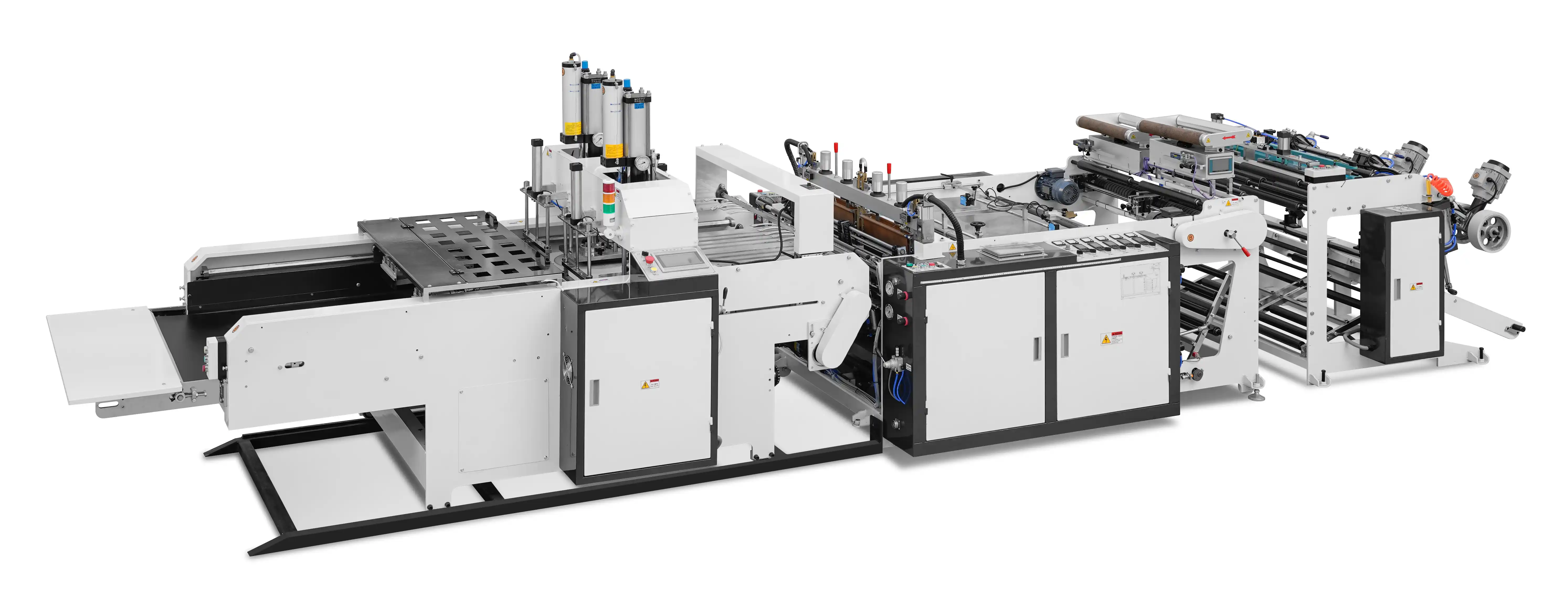

GDFR-450X2+ED High-Speed Double-Line T-Shirt Bag Making Machine with EPC

The GDFR-450X2+ED is a high-speed double-line T-shirt bag making machine with automatic EPC edge correction and twin independent servo drives, so each line's bag length is controlled separately. It runs HDPE, LDPE, and biodegradable PLA/PBAT films at up to 300 pcs/min, with a "Rocking System" that keeps sealed bags from sticking.

Max. Bag Width

380mmX2

Producing Length

300-700mm

Max. Producing Speed

300pcs/min

Main Technical Parameters

Model	GDFR-450X2
Max. Bag Width	380 mm × 2
Producing Length	300–700 mm
Max. Producing Speed	300 pcs/min
Film Thickness	0.010–0.040 mm
Suitable Materials	HDPE / LDPE / PLA / PBAT
Total Power	11 kW
Max. Film Roll Diameter	800 mm

Performance and Features

The GDFR-450X2 is a double-line vest-handle T-shirt bag making machine — a newly designed, ultra-high-speed practical model. It runs a fully automatic workflow with automatic EPC edge correction, automatic speed and tension control via dancer cylinders, and a swing-arm tension-controlled unwinding unit. Its exclusive patented hot-cut and hot-seal system processes HDPE, LDPE, PLA, and biodegradable PBAT films.

Double independent servo-driven bag feeding motors are easy to control production length of each line.
Equipped the multi auto alarms with automatic stop design.
Built-in multi-language system including Chines, English, Spanish, Arabic, Russian, and Turkish.
Patent design cutting and sealing knife for HDPE, LDPE, PLA, and PBAT (biodegradable) materials.
The whole pile of bags has the "Rocking System", which would not make each bag’s sealing stick together.
Inline automatic punch machine with folding device and auto waste collection system.

Manufacturing Process

From raw film to finished T-shirt bag — unwinding, hot sealing, die cutting and folding in one line

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

Hot Sealing & Hot Cutting

Heat-seals the bag body and cuts individual bags in one synchronized pass for clean, strong edges.

Die Cut

Punches the vest-style handle opening and trims the bag profile with a precision die.

Folding

Automatically stacks and folds finished bags for neat collection and downstream packing.

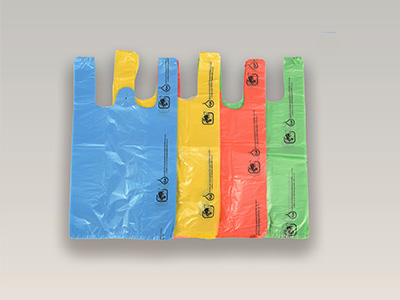

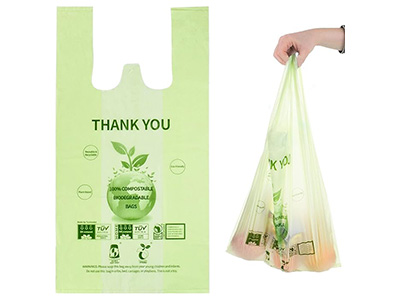

Applications & Industries We Serve

Every Lingfeng plastic bag making machine is built around a real production goal. Below are the most common bag types and industries this equipment serves ?from high-volume retail to specialized, eco-friendly formats. Tell us your application and our engineers will match the right machine configuration.
