GDFR-800/1000+G+S Double-Line Plastic Carry Bag Making Machine with Hot Slitting & Side Gusset - GDFR-800/1000+G+S High Speed Double Lines T-Shirt Bag Making Machine With Hot Slitting and Side Welding

Watch The Video

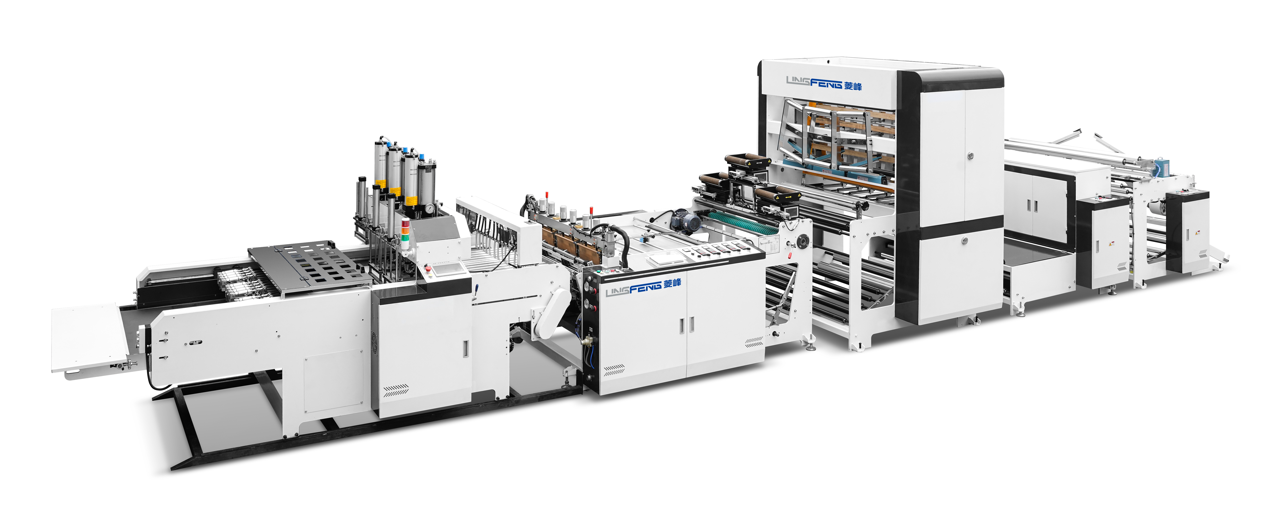

GDFR-800/1000+G+S Double-Line Plastic Carry Bag Making Machine with Hot Slitting & Side Gusset

The GDFR-800/1000+G+S is a fully automatic double-line plastic carry bag making machine that slits a jumbo roll into two lines with an inline side gusset. With EPC edge correction and automatic speed and tension control, it produces gusseted vest-handle carry bags in HDPE, LDPE, and biodegradable PLA/PBAT at up to 250 pcs/min.

Max. Bag Width

330mmX2

Producing Length

300-700mm

Max. Producing Speed

250pcs/min

Main Technical Parameters

Model	GDFR-800	GDFR-1000
Max. Bag Width	330 mm × 2	420 mm × 2
Producing Length	300–700 mm	300–700 mm
Max. Producing Speed	250 pcs/min	250 pcs/min
Film Thickness	0.010–0.040 mm	0.010–0.040 mm
Suitable Materials	HDPE / LDPE / PLA / PBAT	HDPE / LDPE / PLA / PBAT
Total Power	13 kW	15 kW
Max. Film Roll Diameter	850 mm	850 mm
Max. Film Roll Width	900 mm	1200 mm

Performance and Features

The GDFR-800/1000+G+S is a double-line vest-handle T-shirt bag making machine that slits one jumbo roll into two lines with an inline side gusset. It runs a fully automatic workflow with automatic EPC edge correction, automatic speed and tension control via dancer cylinders, and a swing-arm, servo-boosted unwinding unit. Its exclusive patented hot-cut and hot-seal system handles HDPE, LDPE, PLA, and biodegradable PBAT films.

Equipped the multi auto alarms with automatic stop design.
Built-in multi-language system including Chines, English, Spanish, Arabic, Russian, and Turkish.
Patent design cutting and sealing knife for HDPE, LDPE, PLA, and PBAT (biodegradable) materials.
The whole pile of bags has the "Rocking System", which would not make each bag’s sealing stick together.
Inline automatic punch machine with folding device and auto waste collection system.
Built-in inline hot slitting device and side gusset device by automatic speed and tension control.

Manufacturing Process

From raw film to finished T-shirt bag — a fully automated 7-stage production line with inline slitting and gusset

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

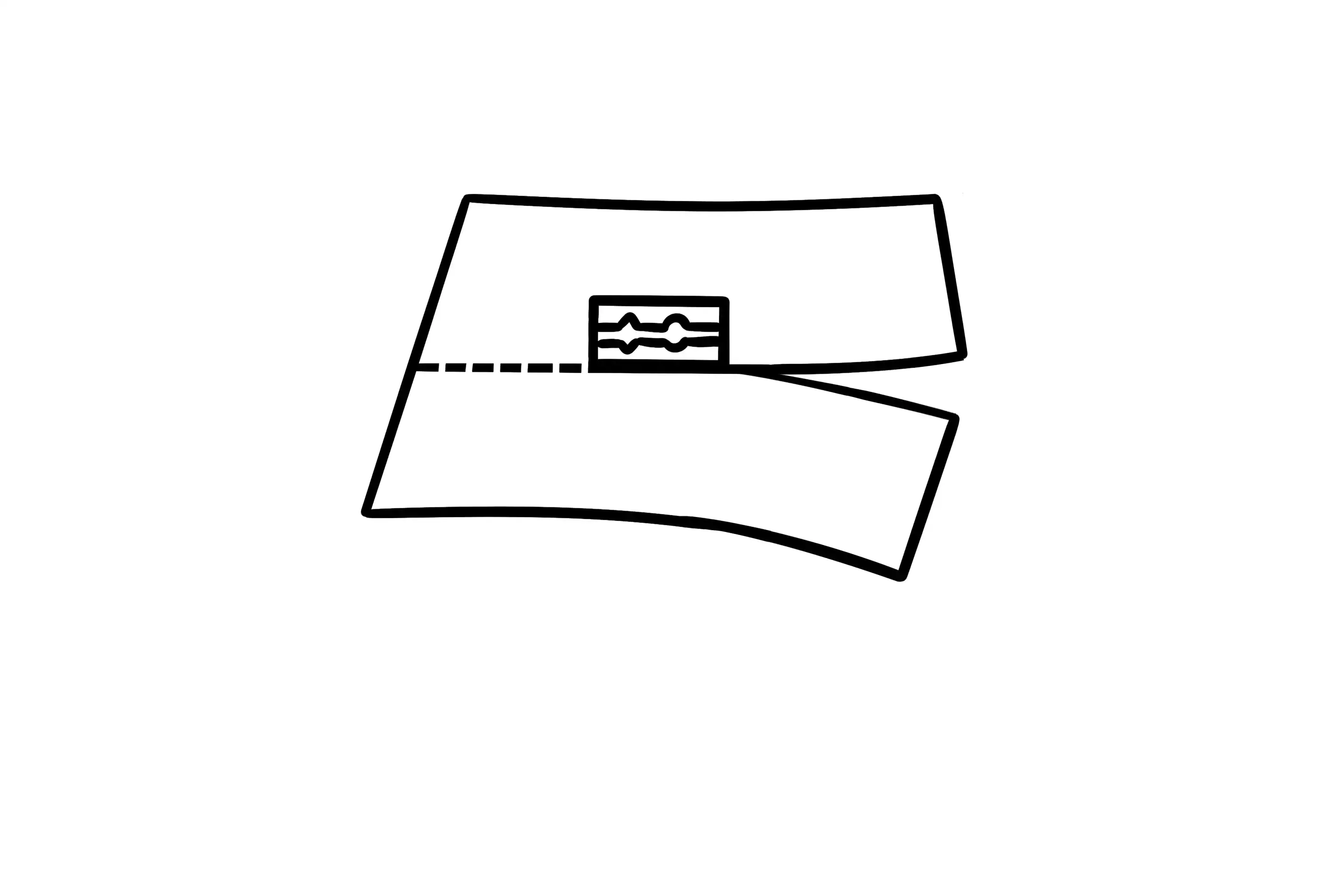

Hot Slitting

Slits a wide jumbo roll into multiple narrow lanes inline before bag forming begins.

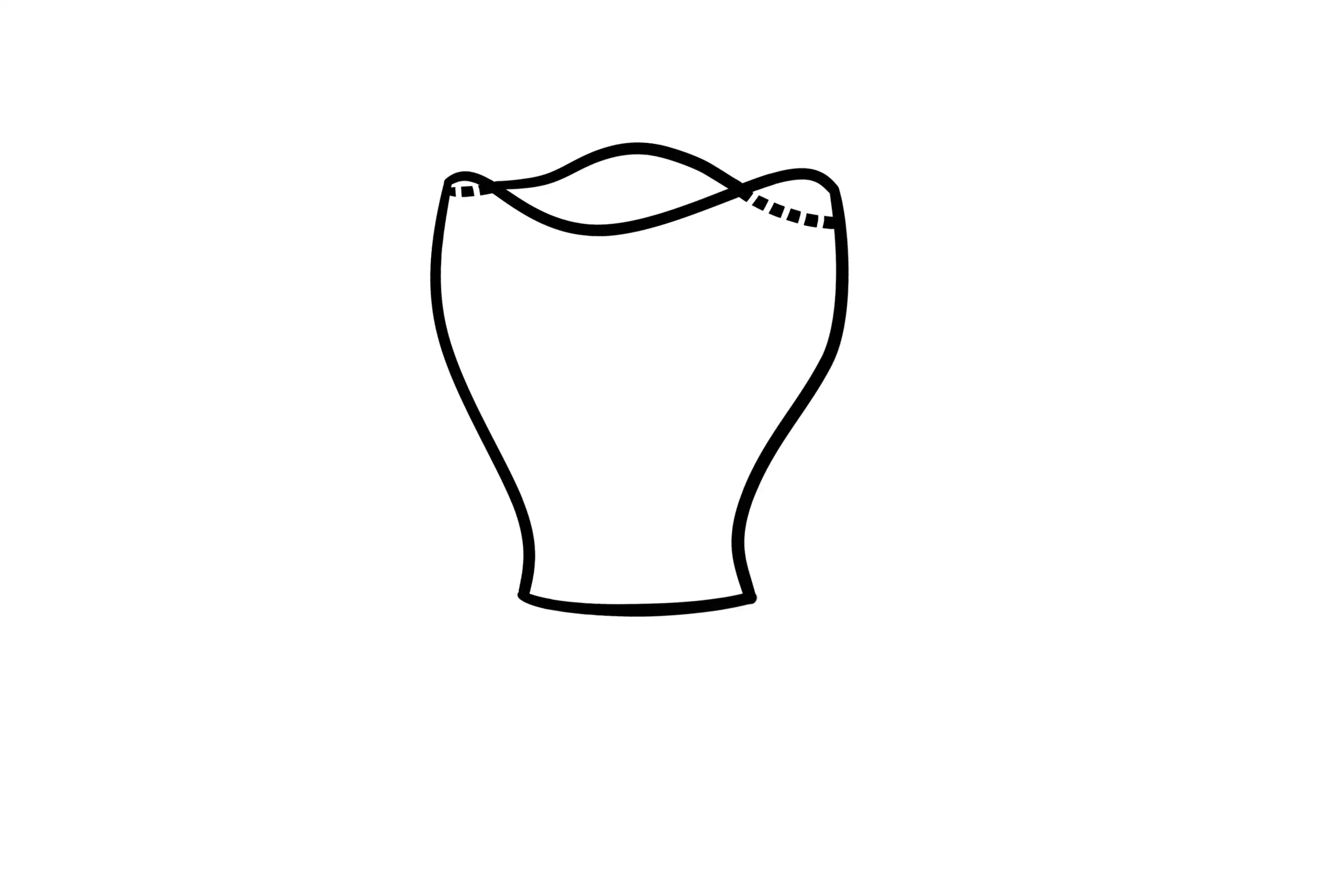

Air Inflation

Inflates the tubular film to open side folds and prepare the web for gusset forming.

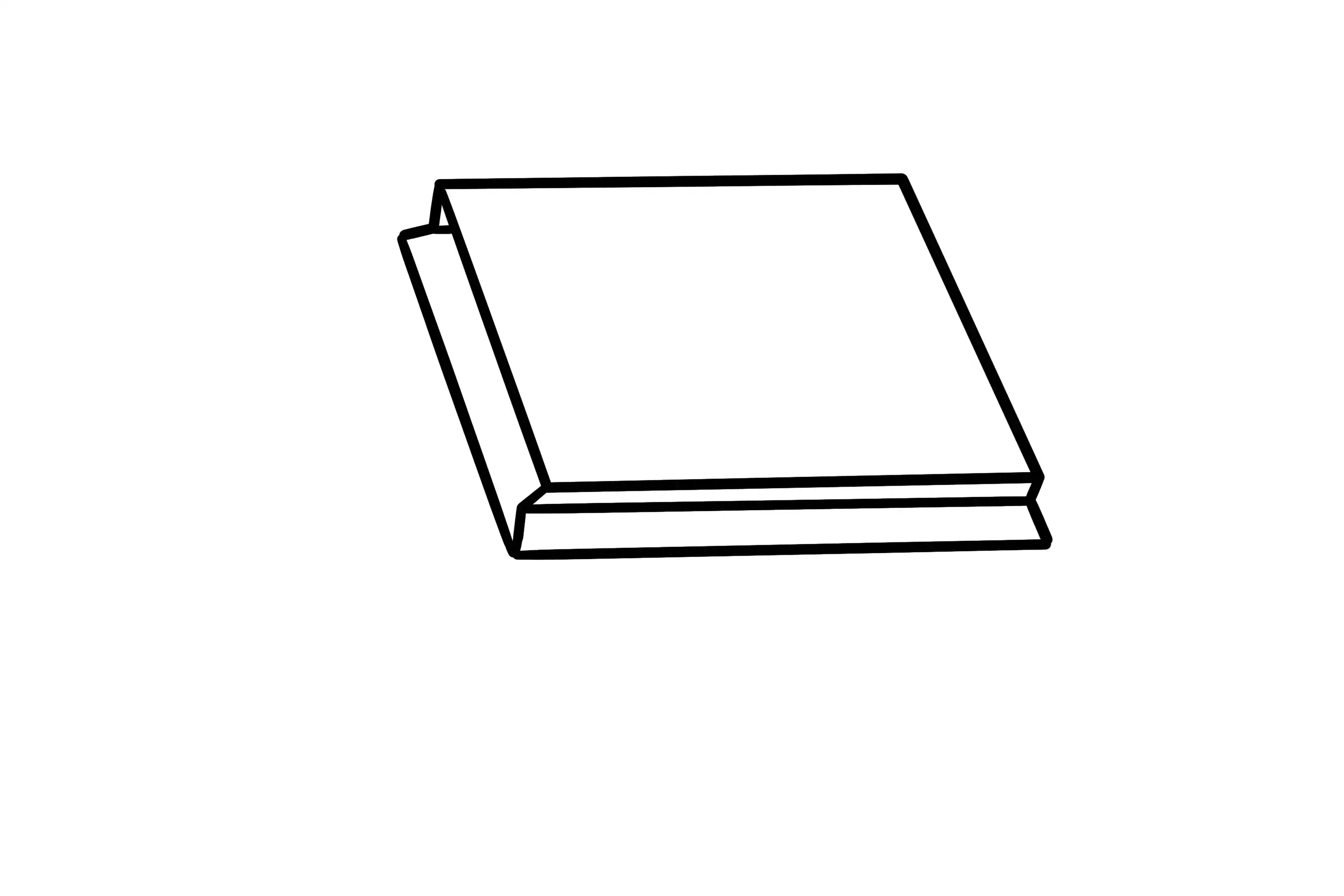

Gusset

Forms side gussets by folding the inflated film inward, adding depth to the bag body.

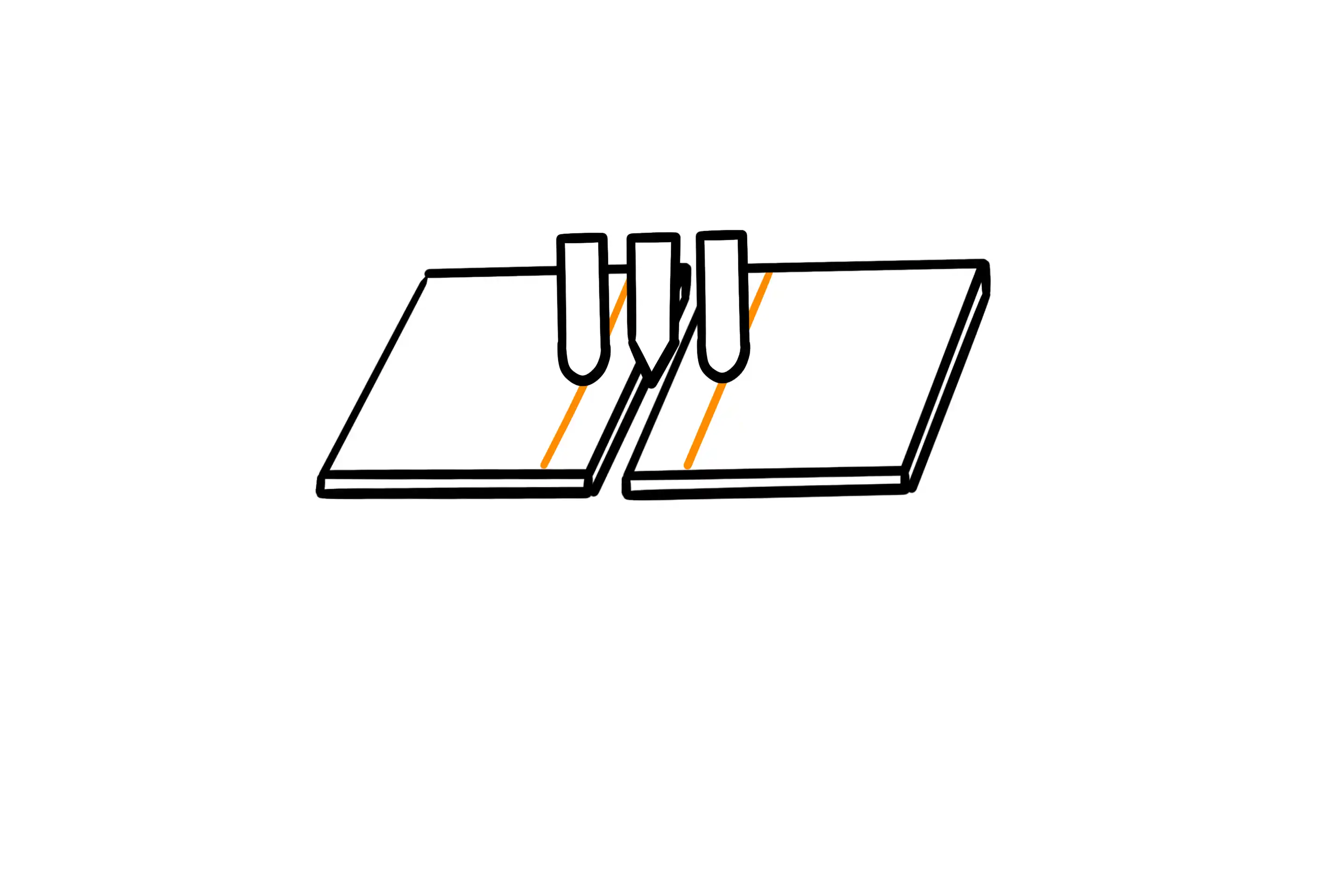

Hot Sealing & Hot Cutting

Heat-seals the bag body and cuts individual bags in one synchronized pass for clean, strong edges.

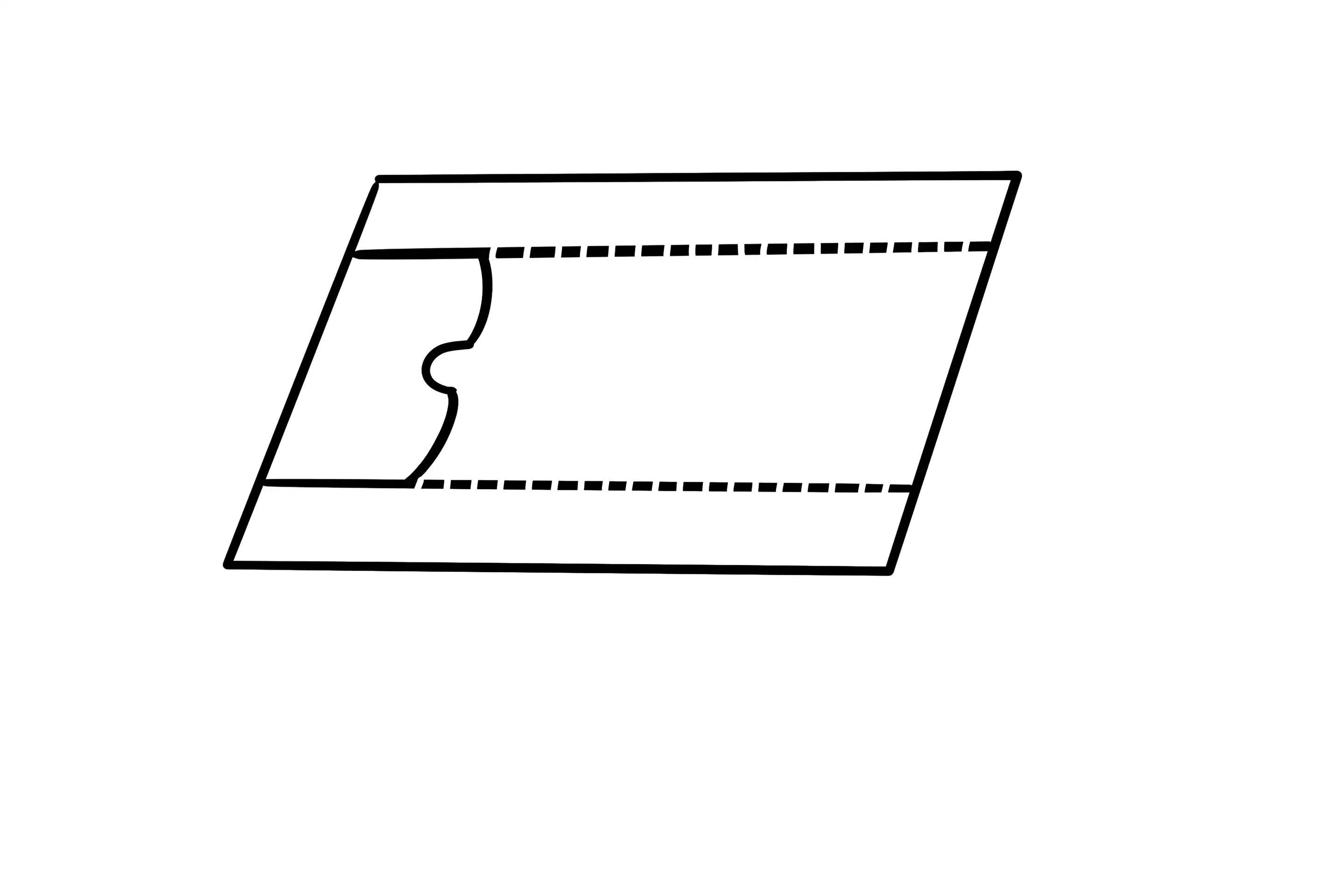

Die Cut

Punches the vest-style handle opening and trims the bag profile with a precision die.

Folding

Automatically stacks and folds finished bags for neat collection and downstream packing.
