BF-800+GPC Fully Automatic High Speed Inside Glue Patch Handle Bag Making Machine - Fully Automatic High Speed Inside Glue Patch Handle Bag Making Machine

Watch The Video

BF-800+GPC Fully Automatic High Speed Inside Glue Patch Handle Bag Making Machine

The BF-800+GPC is a premium, fully automatic side-sealing bag making machine featuring an integrated inline inside glue patch reinforcement system. Engineered specifically for high-end retail, boutique, and fashion carrier markets, it combines patch unrolling, automated hot-melt gluing, compression lamination, and precise handle slot punching into one streamlined process running up to 150 pcs/min. This machine eliminates structural deformation, delivering smooth, warp-free reinforcement patches that substantially increase bag loading capacity and enhance brand value.

Max. Producing Width (Bag Length)

700mm

Producing Length (Bag Width)

200-650mm

Max. Producing Speed

150pcs/min

Main Technical Parameters

Model	BF-800+GPC
Max. Producing Width (Bag Length)	700mm
Producing Length (Bag Width)	200-650mm
Max. Producing Speed	150pcs/min
Film Thickness	0.060-0.10mm
Patch Film Width	140mm
Patch Film Unwinding Diameter	600mm
Total Power	12kW
Max. Upload Film Roll Size	850mm
Max. Upload Film Roll Width	1400mm

Performance and Features

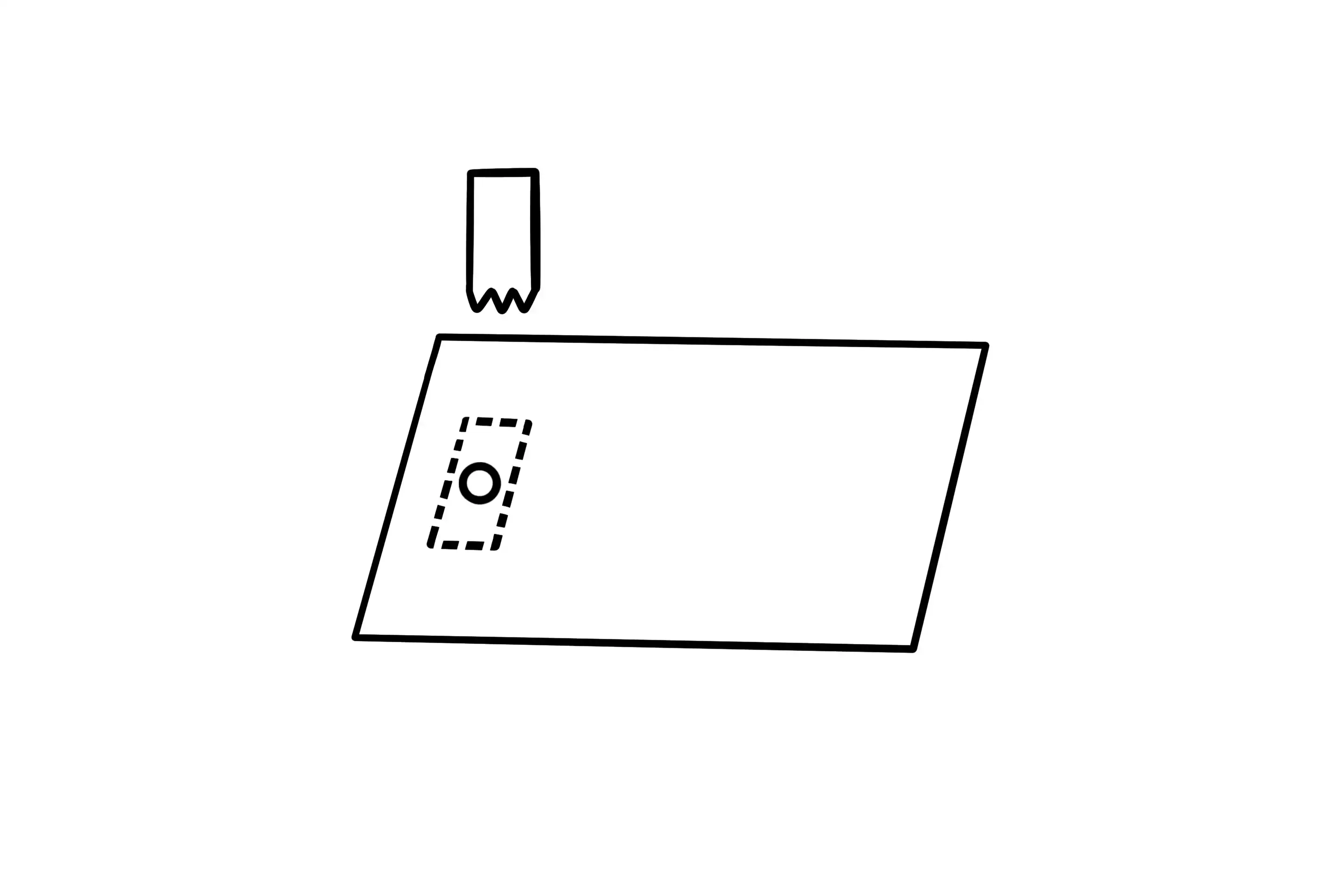

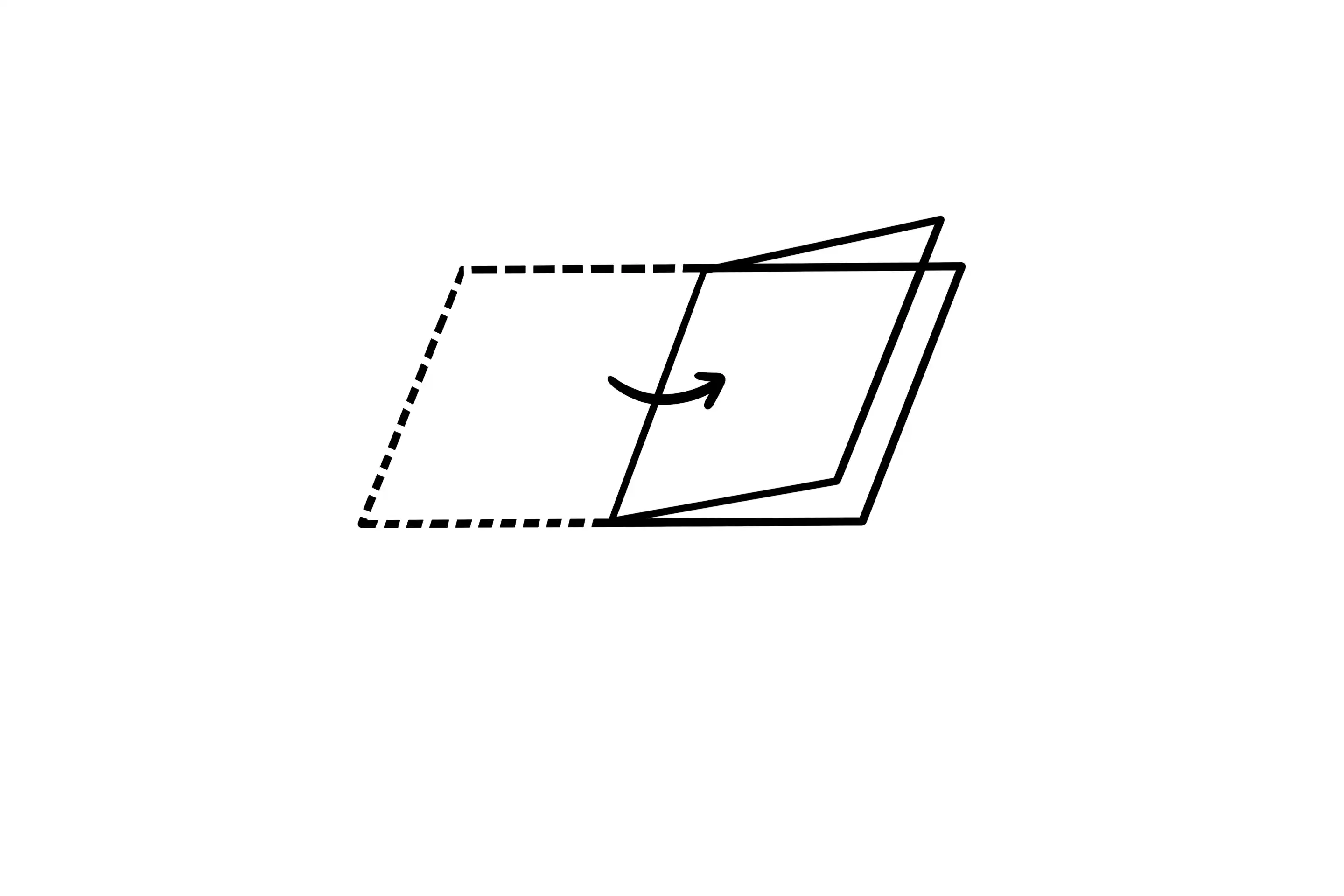

Monoblock Patch Lamination: Merges the separate, complex processes of raw material feeding, precise hot adhesive deposition, strip lamination, and handle punch die-pressing into a unified, high-speed inline workflow.
Warping-Free Contact Bonding: Utilizes custom-regulated press rollers and continuous positioning modules to ensure patch sheets sit perfectly flat on the substrate, preventing common flaws like edge curling, lifting, or air pocketing.
Heavy-Gauge Processing Profiles: Engineered with structural stability to cleanly feed and seal premium retail films ranging from 0.060 mm up to 0.10 mm in thickness without risking weak side-seams or split edges.
Servo-Driven Tracking Network: Employs ultra-precise independent servo motor tracking arrays to align the 140 mm patch strip perfectly to the printed graphics of the main bag body film.
High-Strength Thermal Side Welds: Features a heavy-duty side-sealing bar with digital PID multi-zone heat elements, ensuring clean, strong, and highly transparent welds on multi-layer co-extruded or blended films.
Global HMI Micro-Controller: Outfitted with an interactive digital touch control terminal featuring multi-language system presets including English, Spanish, Arabic, Russian, Turkish, and Chinese.
