How can I get a quote for the LFSD-880?

Contact Lingfeng Machinery via the inquiry form on this page for a tailored line proposal based on your bag type, film material, width and output target.

LFSD-880+G Full Automatic High Speed Wicket Bag Making Machine - Full Automatic High Speed Wicket Bag Making Machine

Watch The Video

LFSD-880+G Full Automatic High Speed Wicket Bag Making Machine

Exclusive design for side seal wicket bag. Automatic collecting by manipulators and punch by hydraulic cylinders into wicket bags. Multifunctional bag making, can making Double and single cups milk tea bag, saddle bags, and glove bags

Max. Bag Width

800mm

Producing Length

150-450mm

Max. Producing Speed

250pcs/min

Main Technical Parameters

Model	LFSD-880+G
Max. Bag Width	800mm
Producing Length	150-450mm
Max. Producing Speed	250pcs/min
Film Thickness	0.010-0.040mm
Total Power	9kW
Max. Upload Film Roll Size	850mm

What Are Wicketed Bags?

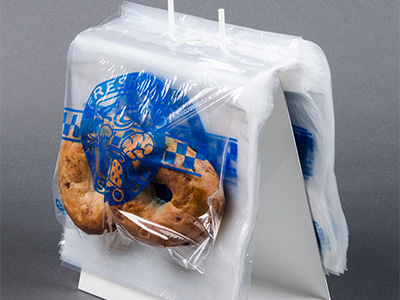

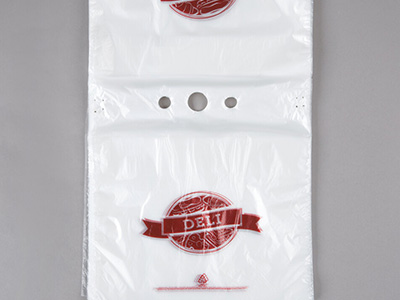

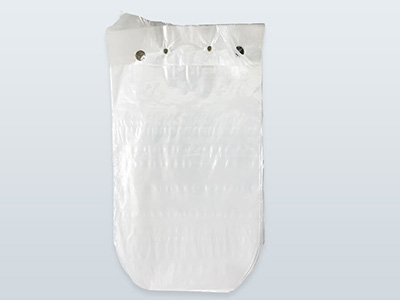

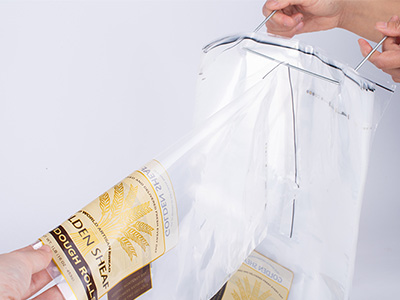

Wicketed bags (also called wicket bags or bags on wickets) are pre-opened poly bags mounted on U-shaped holders, enabling rapid automated filling. These bags on wickets are essential in high-speed production lines across food, pharmaceutical, and industrial sectors.

Key Features ✓ Uniform stacking on wickets for machine feeding ✓ Instant separation by robotic arms ✓ 1-second fill-seal cycle capability ✓ Available as flat/gusseted wicketed poly bags

How Wicket Bag Making Machines Work Modern manufacturing achieves 250+ bags/minute through: ① Multi-layer film extrusion ② Precision wicket heat-sealing ③ Auto-stacking with optical alignment

Why Choose Wicketed Packaging? ▸ 90% faster than manual bag handling ▸ 40% material waste reduction ▸ Compatible with all automatic baggers ▸ Customizable sizes (2"-24") & thickness (1-10 mil)

Industry Applications • Food: Snack packaging, frozen vegetables • Hardware: Nuts/bolts sorting • Medical: Sterile device packaging • E-commerce: Order fulfillment systems

Performance and Features

Exclusive design for side seal wicket bag. Automatic collecting by manipulators and punch by hydraulic cylinders into wicket bags. Added a feeding rack and other design details to enable the machine to achieve multifunctional bag making, can making Double and single cups milk tea bag, saddle bags, and glove bags.

Equipped the multi auto alarms with automatic stop design.
Built-in multi-language system including Chines, English, Spanish, Arabic, Russian, and Turkish.
Independent up and down two layers hot sealing knife for HDPE and LDPE materials.
Inline automatic punch machine can cut one jumbo roll into two bags at same time and with auto waste collection system.
Independent unwinding with auto tension and speed control by servo motor boost.
Turnover twist sealing copper knife easier to clean.
Other options are available depends on sample bag such as square bottom or round buttom sealings.

Manufacturing Process

Gusseted side seal bag — inflation, gusset, side sealing and die cut

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

Air Inflation

Inflates the tubular film to open side folds and prepare the web for gusset forming.

Gusset

Forms side gussets by folding the inflated film inward, adding depth to the bag body.

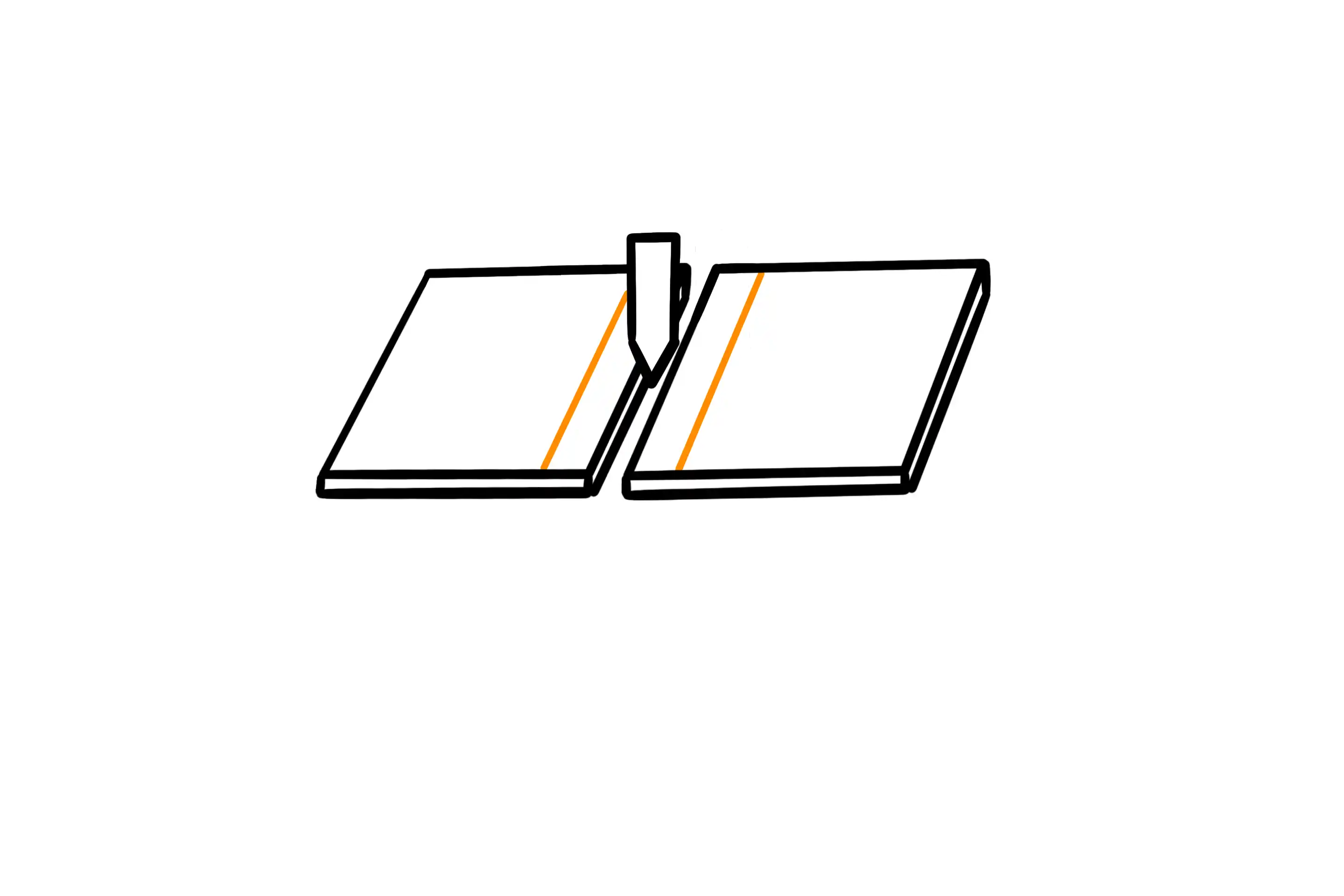

Side Sealing & Cutting

Continuous side-welding and transverse cutting for courier, OPP and stationery formats.

Die Cut

Punches the vest-style handle opening and trims the bag profile with a precision die.

Applications & Industries We Serve

Every Lingfeng plastic bag making machine is built around a real production goal. Below are the most common bag types and industries this equipment serves ?from high-volume retail to specialized, eco-friendly formats. Tell us your application and our engineers will match the right machine configuration.
