What is the Automatic?

Description: Fully Automatic Side-Seal Bag Making Machine with Soft Handle attachment device. Featuring a fully automated streamlined assembly line design to minimize manual labor.

How can I get a quote for the Automatic?

Contact Lingfeng Machinery via the inquiry form on this page for a tailored line proposal based on your bag type, film material, width and output target.

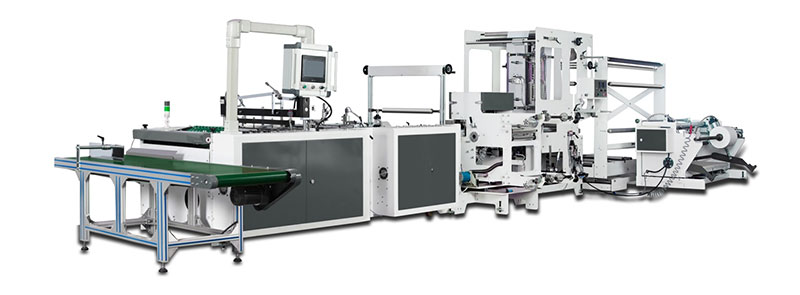

Automatic Bottom Sealing with Soft Loop Handle Bag Making - BFLH-800 Automatic Bottom Sealing with Soft Loop Handle Bag Making

Watch The Video

Automatic Bottom Sealing with Soft Loop Handle Bag Making

Max. Producing Width (Bag Length)

250-600mm

Producing Length (Bag Width)

250-700mm

Max. Producing Speed

70pcs/min

Main Technical Parameters

Model	BFLH-800
Max. Producing Width (Bag Length)	250-600mm
Producing Length (Bag Width)	250-700mm
Max. Producing Speed	70pcs/min
Soft Handle Length	360mm
Soft Handle Width	30mm
Top Fold Length	50-75mm
Bottom Gusset Length	30-100mm
Max Unwind Width	1600mm
Film Thickness	0.050-0.20mm
Total Power	8kW

Performance and Features

Applicable materials: HDPE and LDPE. Equipped with patented side-sealing thermal blades for secure, aesthetically pleasing, premium and elegant bag sealing. Designed for producing various plastic packaging products including beverage bags, shoe box/garment packaging bags, and both standard and premium-grade plastic bags. Touchscreen operation with multi-language OS Photoelectric length setting & tracking Auto-positioning & edge correction system Precise counting with alert function Integrated soft-handle heat sealing

Inline top fold and seal, bottom gusset device
Automatic bag stacking
Industrial-grade stability and accuracy

Manufacturing Process

Soft loop handle side seal bag — folding, handle forming and side sealing

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

Folding

Automatically stacks and folds finished bags for neat collection and downstream packing.

Soft Loop Handle

Attaches a heat-softened soft loop handle strip to the bag top for premium retail carry bags.

Side Sealing & Cutting

Continuous side-welding and transverse cutting for courier, OPP and stationery formats.

Applications & Industries We Serve

Every Lingfeng plastic bag making machine is built around a real production goal. Below are the most common bag types and industries this equipment serves ?from high-volume retail to specialized, eco-friendly formats. Tell us your application and our engineers will match the right machine configuration.
