LFFD-1600+G+S Multi-Line Flying-Knife Bottom Seal Machine with Inline Hot-Slitting & Side Gusset - LFFD-1600+G+S

Watch The Video

LFFD-1600+G+S Multi-Line Flying-Knife Bottom Seal Machine with Inline Hot-Slitting & Side Gusset

The LFFD-1600+G+S is a multi-line bottom seal bag making machine that slits one wide jumbo roll into multiple lines inline, adds side gussets, and double-folds long bags automatically. A servo-driven flying knife and dual-side wire sealing deliver strong seals across HDPE, LDPE, and FFS films — configurable as one 1500mm web or split into 2–3 narrower lines.

Max. Bag Width

1500mm700mmx2450mmx3330mmx2

Producing Length

200-2000mm

Max. Producing Speed

70pcs/min

Main Technical Parameters

Model	LFFD-1600+G+S
Max. Bag Width	1500 mm / 700 mm × 2 / 450 mm × 3 / 330 mm × 2
Producing Length	200–2000 mm
Max. Producing Speed	80 pcs/min
Film Thickness	0.010–0.040 mm
Suitable Materials	HDPE / LDPE / FFS
Total Power	15 kW
Max. Film Roll Diameter	1000 mm
Max. Film Roll Width	1800 mm

Performance and Features

The LFFD-1600+G+S uses a servo-driven flying-knife cut-off for quick knife replacement, with two-sided heating-wire sealing for a strong seal line on HDPE, LDPE, and FFS films. A built-in inline hot-slitting unit splits a large jumbo roll into multiple lines, an inline side-gusset device runs under automatic tension and speed control, and an automatic folding unit double-folds large, long bags.
Options: surface-friction unwind with auto lift-up unit; punch unit; V-type sealing; multi-row unwinder with lift-up unit for synchronous multi-roll feeding. Standard features include automatic tension control, an auto pneumatic lift-up unit, and an auto-stop system for film-out detection.

Manufacturing Process

Multi-line bottom seal with inline hot slitting, gusset and fly-knife sealing & cutting

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

Hot Slitting

Slits a wide jumbo roll into multiple narrow lanes inline before bag forming begins.

Air Inflation

Inflates the tubular film to open side folds and prepare the web for gusset forming.

Gusset

Forms side gussets by folding the inflated film inward, adding depth to the bag body.

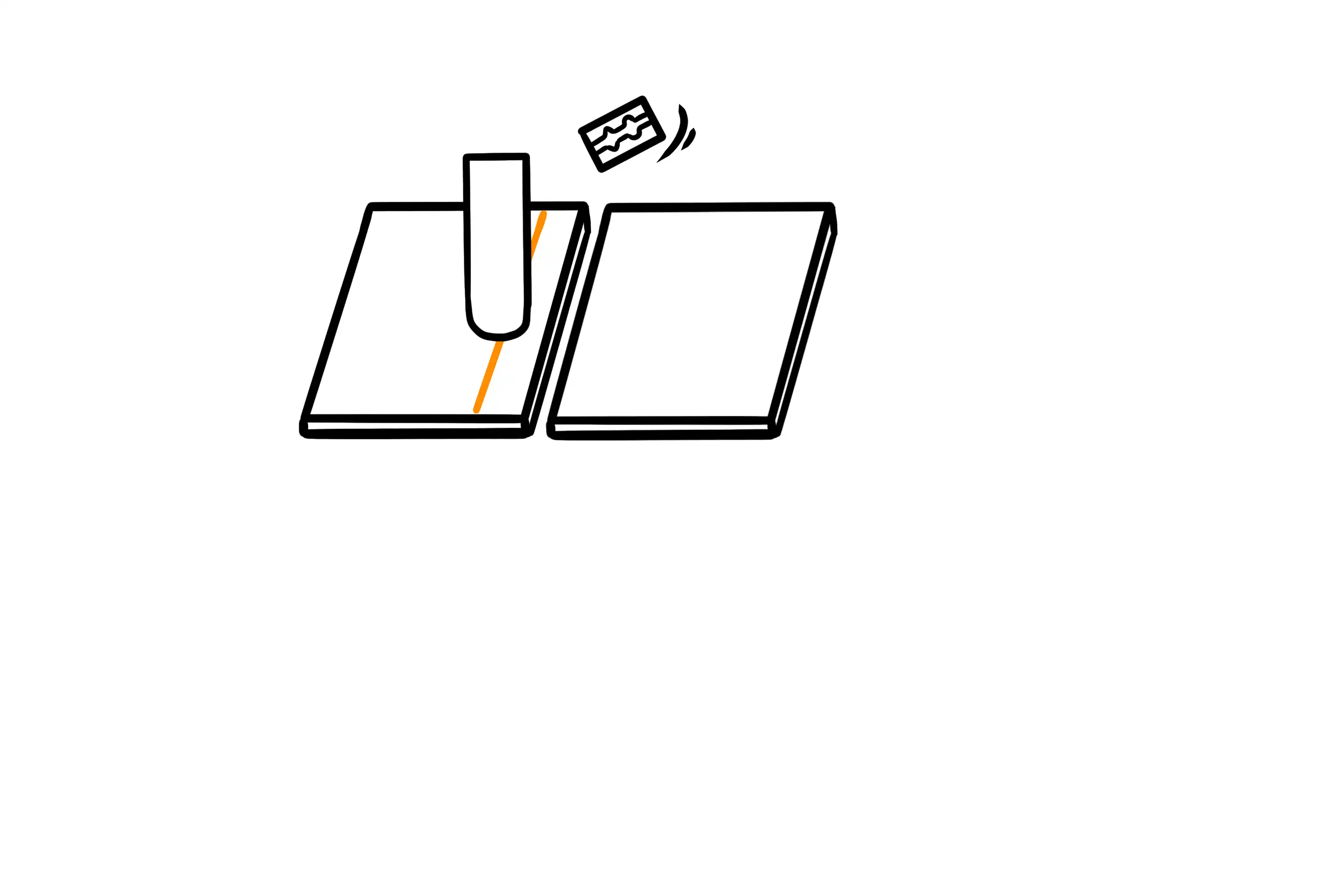

Sealing & Fly Cutting

Servo flying-knife bottom seal and cut-off for heavy-duty flat bags at high line speed.
