How can I get a quote for the LDFP-450X2TS?

Contact Lingfeng Machinery via the inquiry form on this page for a tailored line proposal based on your bag type, film material, width and output target.

LDFP-450X2TS Full Automatic Double-Line Tensionless Bottom Seal Bag Making Machine - Full Automatic Double Lines Tensionless Bottom Sealing Bag Making Machine

Watch The Video

LDFP-450X2TS Full Automatic Double-Line Tensionless Bottom Seal Bag Making Machine

The LDFP-450X2TS is a double-line tensionless bottom seal bag making machine using a hot-seal, cold-cut method under full servo control. Four servo feed motors (two per line, front and back) hold the film tension-free at the seal point for stronger seams, while independent cold-cut knives give a clean finish. It runs HDPE, LDPE, and biodegradable PLA/PBAT at up to 180 pcs/min.

Max. Bag Width

380mmX2

Producing Length

300-700mm

Max. Producing Speed

180pcs/min

Main Technical Parameters

Model	LDFP-450X2TS
Max. Bag Width	380 mm × 2
Producing Length	300–700 mm
Max. Producing Speed	180 pcs/min
Film Thickness	0.010–0.10 mm
Suitable Materials	HDPE / LDPE / PLA / PBAT
Total Power	16 kW
Max. Film Roll Diameter	800 mm

Performance and Features

The LDFP-450X2TS makes two-line fingers-handle bottom seal bags by a hot-sealing, cold-cutting method in a tensionless servo drive system. Front-and-back four-servo feeding holds the film tension-free at the seal, giving a stronger, cleaner seam. The fully automatic workflow includes automatic EPC edge correction, automatic speed and tension control via dancer cylinders, and a swing-arm tension-controlled unwind. Independent pressure-controlled hot sealing handles HDPE, LDPE, PLA, and biodegradable PBAT, and each line's cold-cut knife is independently designed for a clean cut.

Tensionless sealing via front-and-back servo feed — two servo motors per line, four in total — for true no-tension sealing.
Multiple automatic alarms with auto-stop protection.
Patented cutting-and-sealing knife for HDPE, LDPE, PLA, and biodegradable PBAT films.
Inline automatic handle-hole punch with automatic waste collection.
PLC-controlled no-tension sealing.

Manufacturing Process

Double-line handle bottom seal — unwinding, cold cutting and inline die cut

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

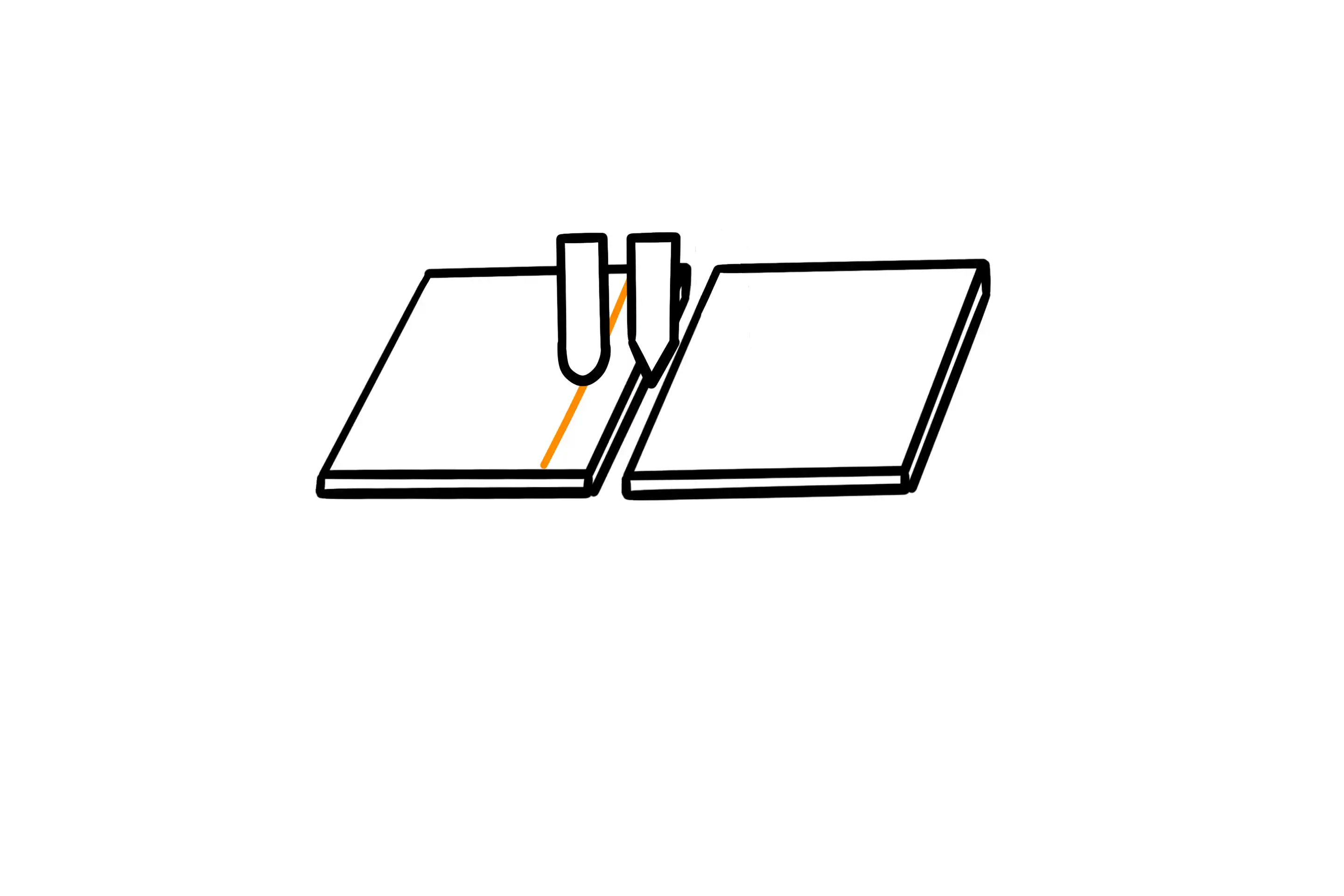

Sealing & Cold Cutting

Hot-seals the bag bottom then cold-cuts through thick film without deforming the seal.

Die Cut

Punches the vest-style handle opening and trims the bag profile with a precision die.

Applications & Industries We Serve

Every Lingfeng plastic bag making machine is built around a real production goal. Below are the most common bag types and industries this equipment serves ?from high-volume retail to specialized, eco-friendly formats. Tell us your application and our engineers will match the right machine configuration.
