How can I get a quote for the LDF-1000H?

Contact Lingfeng Machinery via the inquiry form on this page for a tailored line proposal based on your bag type, film material, width and output target.

LDF-1000H+DS Double Layers/Four Lines Bottom High Speed Sealing Bag Making Machine with Automatic Motor Rolls Lift - High Speed Double Layers Four Lines Bottom Sealing Bag Making Machine with Automatic Motor Rolls Lift

Watch The Video

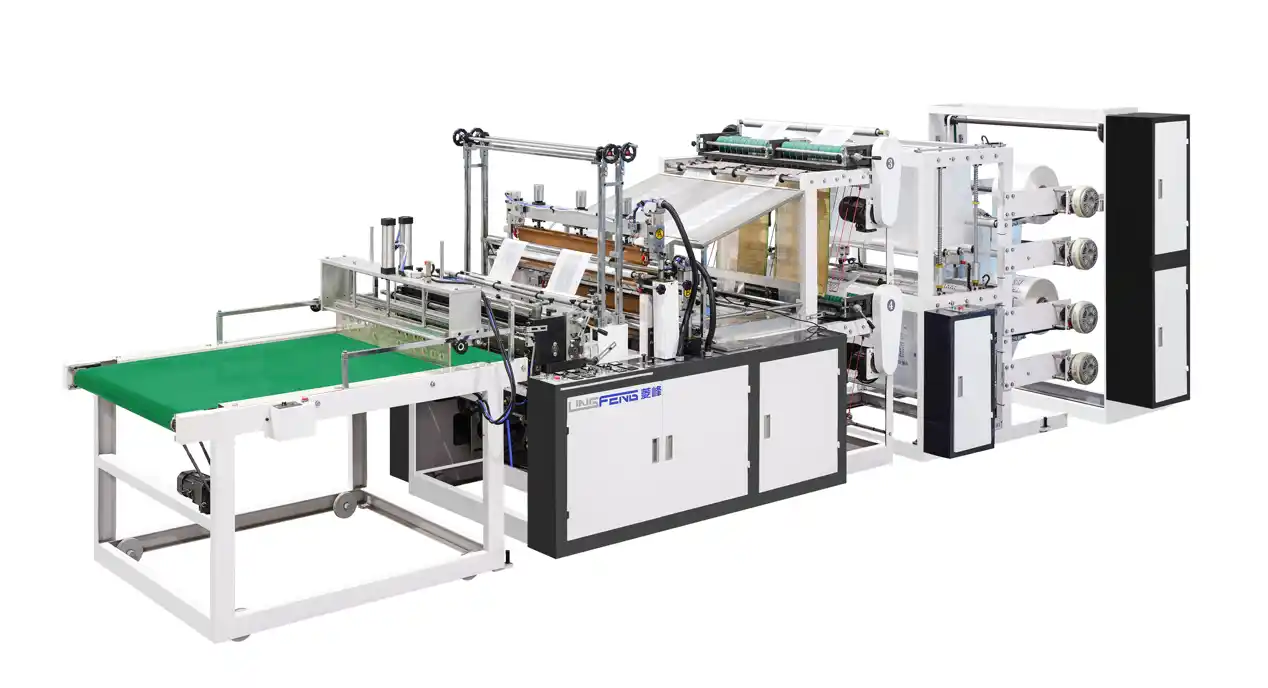

LDF-1000H+DS Double Layers/Four Lines Bottom High Speed Sealing Bag Making Machine with Automatic Motor Rolls Lift

The LDF-1000H+DS is a heavy-duty, ultra-high-speed bottom sealing bag making machine engineered for maximum manufacturing throughput. Featuring an advanced double-layer, four-line synchronized feeding system, it effectively quadruples your production capacity within a single machine footprint. The standout motorized automatic roll lift framework eliminates manual heavy lifting during raw material changes, while the integrated floating roller tension control ensures airtight thermal bottom seals at blistering operational speeds

Max. Bag Width

400mm*4

Producing Length

300-800mm

Film Thickness

0.010-0.030mm

Main Technical Parameters

Model	LDF-1000H+DS
Max. Bag Width	400mm*4
Producing Length	300-800mm
Max. Producing Speed	180pcs/min
Film Thickness	0.010-0.030mm
Total Power	11kW

Performance and Features

Quad-Lane Production Power: Operates with a unique double-layer structure running 4 lines simultaneously. This configuration delivers massive output scaling up to several hundred bag pieces per minute, driving down your cost-per-bag to an absolute minimum.
Motorized Automatic Roll Lift: Say goodbye to hydraulic jacks and manual strain. The rear unwinding station features an electric smart-hoist assembly that lifts massive jumbo film rolls into place at the push of a button.
Floating Roller Tension Control: Outfitted with a highly responsive dancer-cylinder floating roller network that dampens film vibration and dynamically stabilizes web web tension across all 4 lanes simultaneously.
Industrial Thermal Heat-Sealing: Employs a heavy-gauge sealing bar with dual-zone micro-temperature control to execute consistent, leak-proof bottom seals on structural HDPE, LDPE, and eco-friendly films.
High-Speed Cold Cutting: Paired with a heavy-duty mechanical flying knife that precisely sheers the heated plastic tubes under zero-tension conditions, generating completely uniform, non-warped bottom edges.
Smart Multi-Language Controller: A central PLC command station manages bag length, production batch counters, and fault alarms with a simple interactive touchscreen supporting English, Spanish, Arabic, Russian, and Turkish.

Applications & Industries We Serve

Every Lingfeng plastic bag making machine is built around a real production goal. Below are the most common bag types and industries this equipment serves ?from high-volume retail to specialized, eco-friendly formats. Tell us your application and our engineers will match the right machine configuration.
