LDF-1000/1200+SZ Automatic Garbage Bag Making & Folding Machine - Automatic Garbage Bag Making & Folding Machine

Watch The Video

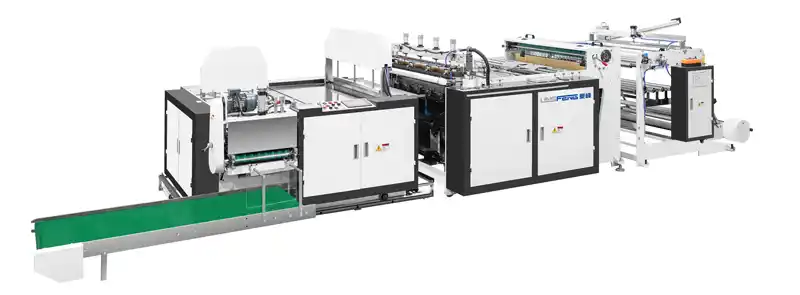

LDF-1000/1200+SZ Automatic Garbage Bag Making & Folding Machine

The LDF-1000/1200+SZ pairs a bottom seal/cutting unit with an automatic folding machine to produce printed and unprinted flat garbage bags from HDPE and LDPE, then fold them down to compact size. PLC-controlled with an imported touchscreen, it folds accurately to a set count without manual sorting, in widths up to 1100mm.

Max. Bag Width

900mm

Producing Length

700-1200mm

Max. Producing Speed

30-150pcs/min

Main Technical Parameters

Model	LDF-1000+SZ	LDF-1200+SZ
Max. Bag Width	900 mm	1100 mm
Producing Length	700–1200 mm	700–1300 mm
Max. Producing Speed	30–60 pcs/min	30–60 pcs/min
Film Thickness	0.010–0.110 mm	0.010–0.110 mm
Suitable Materials	HDPE / LDPE	HDPE / LDPE
Total Power	6 kW	6 kW
Weight	1800 kg	2200 kg

Performance and Features

This machine produces printed and unprinted flat bags from HDPE and LDPE, then folds them into a smaller size automatically.

Step-motor or servo-motor drive with PLC control and an imported touchscreen for easy operation.
Works together with the sealing-and-cutting machine; each bag is folded automatically, saving time and labor.
Highly accurate folding with a settable folded-bag count — no manual sorting required.

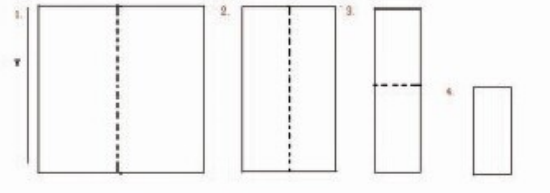

Handles different bag widths, folding in up to three stages to speed up downstream packaging.

Manufacturing Process

Garbage bag making — seal, cold cut and multi-fold in one automatic line

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

Sealing & Cold Cutting

Hot-seals the bag bottom then cold-cuts through thick film without deforming the seal.

Folding

Automatically stacks and folds finished bags for neat collection and downstream packing.

Applications & Industries We Serve

Every Lingfeng plastic bag making machine is built around a real production goal. Below are the most common bag types and industries this equipment serves ?from high-volume retail to specialized, eco-friendly formats. Tell us your application and our engineers will match the right machine configuration.
