LDF-600+TS+LH Automatic Bottom-Sealing Soft Loop Handle Bag Making Machine - Automatic Bottom Sealing with Soft Loop Handle Bag Making Machine

Watch The Video

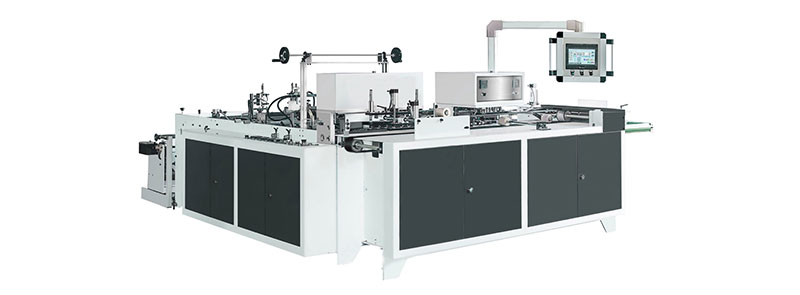

LDF-600+TS+LH Automatic Bottom-Sealing Soft Loop Handle Bag Making Machine

The LDF-600+TS+LH is an automatic bottom-sealing bag making machine with heat-softened soft loop handles, built for premium HDPE/LDPE packaging — beverage, garment, shoe-box, and boutique bags. A patented heat-sealing blade gives strong, clean, high-end seals, while servo-controlled tensionless sealing and a servo flying-knife cut deliver stable, premium output via a Taiwan Weinview touchscreen.

Max. Bag Width

250-550mm

Producing Length

350-600mm

Max. Producing Speed

60pcs/min

Main Technical Parameters

Model	LDF-600+TS+LH
Max. Bag Width	250–550 mm
Producing Length	350–600 mm
Max. Producing Speed	60 pcs/min
Film Thickness	0.050–0.20 mm
Suitable Materials	HDPE / LDPE
Soft Handle Length	350–360 mm
Soft Handle Width	25–50 mm
Total Power	11 kW
Max. Film Roll Diameter	800 mm

Performance and Features

The LDF-600+TS+LH uses an exclusive patented heat-sealing blade design for strong, attractive, high-end bag seals. It is primarily used to make premium plastic packaging — beverage bags, shoe-box bags, garment bags, and other high- and low-end packaging — with heat-softened soft loop handles formed automatically.

Operated via a Taiwan Weinview touchscreen interface.
Photoelectric length measurement and print-mark tracking.
Automatic positioning and edge correction.
Precise counting with alarm settings.
Automatic handle heat-softening.
Tensionless sealing under servo control for stronger seals.
Servo-driven flying knife for easy knife replacement.
Automated bag stacking.

Manufacturing Process

Soft loop handle bottom seal bag — unwinding, sealing and handle attachment

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

Sealing & Cold Cutting

Hot-seals the bag bottom then cold-cuts through thick film without deforming the seal.

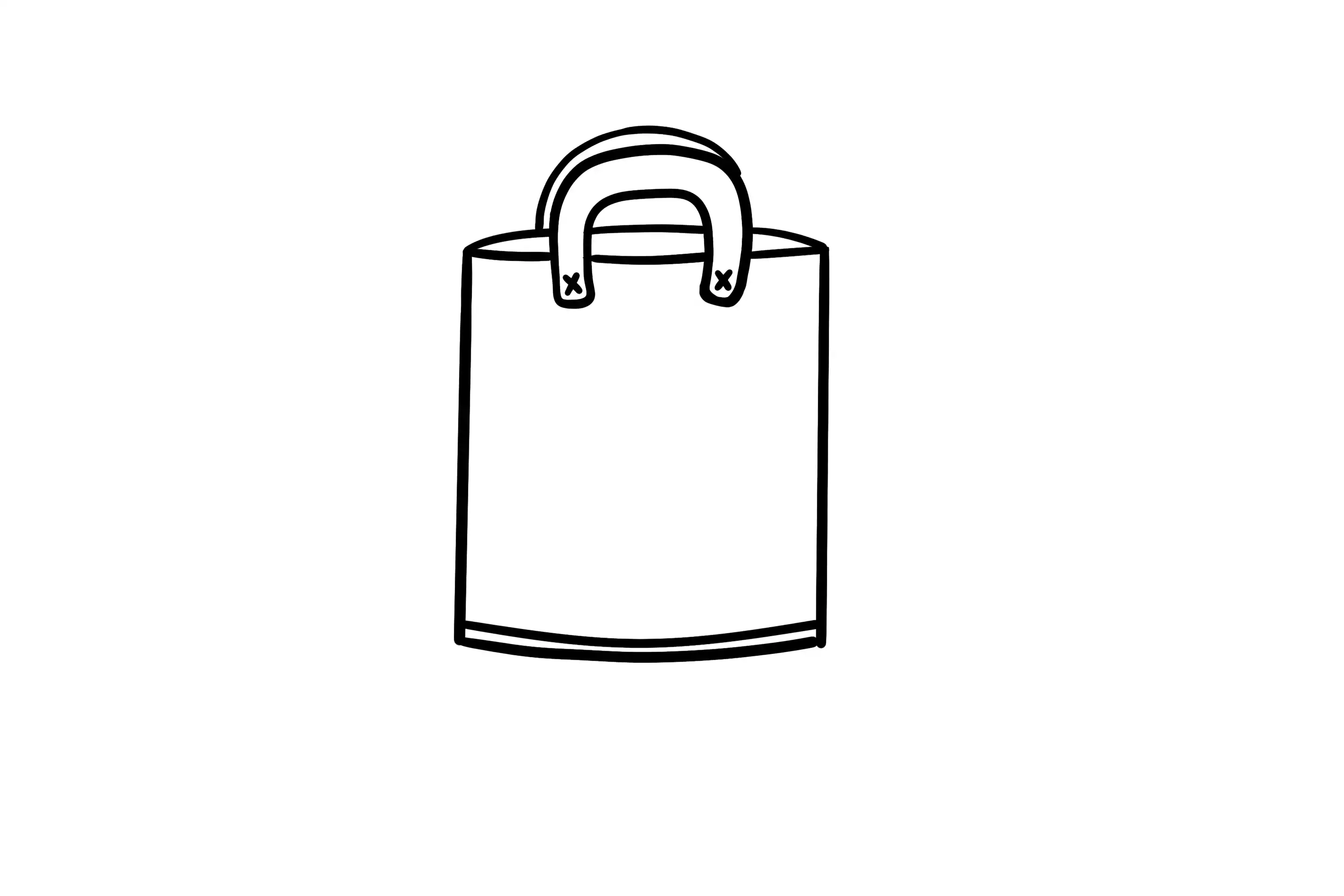

Soft Loop Handle

Attaches a heat-softened soft loop handle strip to the bag top for premium retail carry bags.

Applications & Industries We Serve

Every Lingfeng plastic bag making machine is built around a real production goal. Below are the most common bag types and industries this equipment serves ?from high-volume retail to specialized, eco-friendly formats. Tell us your application and our engineers will match the right machine configuration.
