How can I get a quote for the AGGB-600/800/1000?

Contact Lingfeng Machinery via the inquiry form on this page for a tailored line proposal based on your bag type, film material, width and output target.

AGGB-600/800/1000 Fully Automatic Double Folding Garbage Bag-On-Roll Making Machine - AGGB-600/800/1000 Fully Automatic Double Folding Garbage Bag-On-Roll Making Machine

Watch The Video

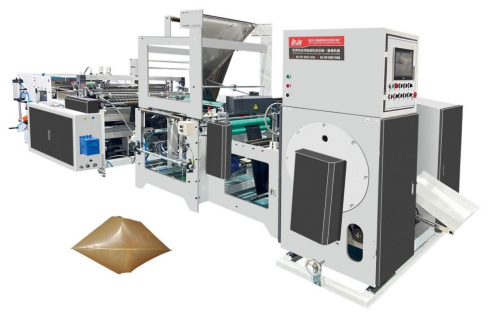

AGGB-600/800/1000 Fully Automatic Double Folding Garbage Bag-On-Roll Making Machine

This machine is mainly used for producing fourfold garbage bag on roll. Automatic rewinding, neat rewinding.

Max. Bag Width

600mm

Producing Length

200-1200mm

Max. Producing Speed

180pcs/min

Main Technical Parameters

Model	AGGB-700	AGGB-800	AGGB-1000
Max. Bag Width	600mm	700mm	900mm
Producing Length	200-1200mm	200-1200mm	200-1200mm
Max. Producing Speed	180pcs/min	150pcs/min	120pcs/min
Film Thickness	0.006-0.050mm	0.006-0.050mm	0.006-0.050mm
Max. Rewinding Width	180mm	200mm	250mm
Max. Rewinding Diameter	180mm	180mm	180mm
Total Power	9kW	11kW	13kW
Winding Width	80-150mm	100-1750mm	100-225mm

Performance and Features

This machine is mainly used for producing fourfold garbage bag on roll. Automatic rewinding, neat rewinding. High speed servo-driven system designed to produce garbage bag-on-roll. Tensionless sealing reaches stronger bottom sealing.

Inline automatic double folds functions.
Changing between jobs is as simple as flipping a switch.
Optional: Labeling machine

Manufacturing Process

Double-fold garbage bag on roll — seal, perforate, fold and rewind

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

Sealing & Perforation

Bottom-seals each bag and adds perforation between bags for roll or coreless formats.

Folding

Automatically stacks and folds finished bags for neat collection and downstream packing.

Rewinding

Winds perforated bags onto paper or PVC cores with controlled tension and uniform roll geometry.

Applications & Industries We Serve

Every Lingfeng plastic bag making machine is built around a real production goal. Below are the most common bag types and industries this equipment serves ?from high-volume retail to specialized, eco-friendly formats. Tell us your application and our engineers will match the right machine configuration.
