AGZB-700+C Fully Automatic C-Fold Table Cover Bag-On-Roll Making Machine -

Watch The Video

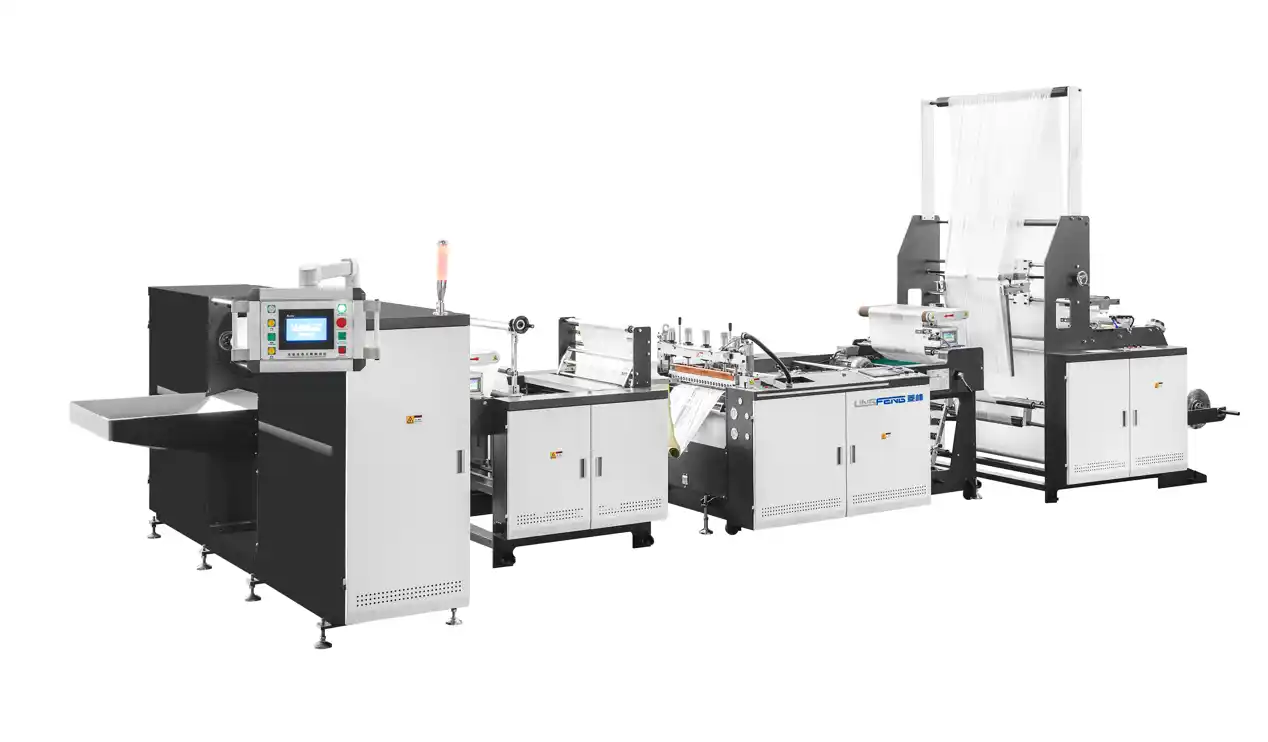

AGZB-700+C Fully Automatic C-Fold Table Cover Bag-On-Roll Making Machine

The AGZB-700+C is a highly specialized, ultra-precise fully automatic bag-on-roll production system engineered specifically for manufacturing rolled plastic table covers and ultra-long surface sheets. It masterfully consolidates advanced raw film unwinding, photoelectric edge-position deviation correction (EPC), heavy-duty heat sealing, steady line perforation, continuous folding, and final synchronized surface rewinding into one uninterrupted automated workflow. Built to accommodate large-scale throughput, it is the premier choice for zero-error production of various-sized C-Fold or V-Fold rolled table cover lines.

Max. Bag Width

600mm

Producing Length

300-1700mm

Max. Producing Speed

200pcs/min

Main Technical Parameters

Model	AGZB-700+C
Max. Bag Width	600mm
Producing Length	300-1700mm
Max. Producing Speed	200pcs/min
Film Thickness	0.006-0.025mm
Max. Rewinding Width	600mm
Max. Rewinding Diameter	180mm
Total Power	20kW
Max. Upload Film Roll Size	800mm

Performance and Features

Precision C-Fold Geometry Board: Features a low-friction inline mechanical folding board array that seamlessly converts wide flat table-cover films into perfect V-folded or C-folded narrow widths without causing material bias or dimensional twisting.
Continuous Non-Stop Rewinding: Equipped with a dual-station rotary collection hub that performs auto-cutting, automated film tucking, and coreless roll changeovers smoothly at full operational capacities.
Heavy-Duty Perforation Matrix: Utilizes an electronically timed rotary perforation bar with micro-notched blades, creating consistent, clean tear lines that pull apart effortlessly without ripping the plastic substrate.
Dynamic Dancer-Roller Synchrony: Paired with an ultra-responsive series of float-dancer pneumatic cylinders to govern material tension fluidly before and after the folding stage, protecting hot seals from pulling apart.
Adaptive Material Processing: Specially configured to weld and split delicate high-density household films as well as dense, heavy-gauge commercial-grade outdoor table protectants with identical structural seam integrity.
Integrated Touchscreen Automation: Features a central PLC human-machine interface allowing instant adjustments to sheet count per roll, cut length tracking, and thermal metrics, complete with full English, Spanish, and Arabic support.

Manufacturing Process

Folded bag on roll — fold, seal, perforate and rewind

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

Folding

Automatically stacks and folds finished bags for neat collection and downstream packing.

Sealing & Perforation

Bottom-seals each bag and adds perforation between bags for roll or coreless formats.

Rewinding

Winds perforated bags onto paper or PVC cores with controlled tension and uniform roll geometry.
