Full Automatic High Speed Single Lines Bags with Core On Roll Making Machine - Full Automatic High Speed Single Lines Bags with Core On Roll Making Machine

Watch The Video

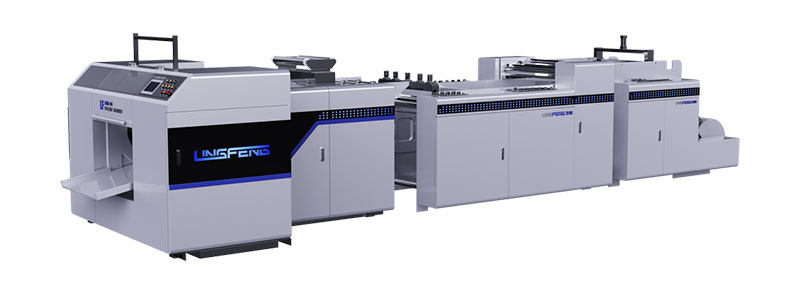

Full Automatic High Speed Single Lines Bags with Core On Roll Making Machine

The innovative bottom-fed paper tube design revolutionizes the traditional replacement method. Compared with top-fed systems, it demonstrates enhanced stability, requires lower consistency specifications for paper tubes, and offers improved compatibility. Designed for bag-on-roll bags with paper or PVC core production. With automatic roll changer to reach non-stop bag on roll change.

Max. Bag Width

300mm

Producing Length

300-600mm

Max. Producing Speed

350pcs/min

Main Technical Parameters

Model	AGRB-400X2
Max. Bag Width	300mm
Producing Length	300-600mm
Max. Producing Speed	350pcs/min
Film Thickness	0.006-0.025mm
Total Power	20kW
Max. Upload Film Roll Size	800mm

Performance and Features

This machine is hot sealing and perforation for bag rewinding with core, which are suit for printing and non-printing bag making. The material of bag is LDPE, HDPE and recycle materials. Designed for bag-on-roll bags with paper or PVC core production. With automatic roll changer to reach non-stop bag on roll change. High speed bottom sealing machine with perforation and paper core rewind. Maximum speed up to 350pcs/min each line.

Fixed distance between sealing and perforation, no adjustments required.
Fully automatic core changing system.
Tension control by cylinder; no tension at the sealing point therefore enhances sealing strength and quality.
Can produce vegetable bag, star sealing bag and gusseted bottom sealing bag.

Manufacturing Process

Core bag on roll — seal, perforate and rewind with paper/PVC core

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

Sealing & Perforation

Bottom-seals each bag and adds perforation between bags for roll or coreless formats.

Rewinding

Winds perforated bags onto paper or PVC cores with controlled tension and uniform roll geometry.

Applications & Industries We Serve

Every Lingfeng plastic bag making machine is built around a real production goal. Below are the most common bag types and industries this equipment serves ?from high-volume retail to specialized, eco-friendly formats. Tell us your application and our engineers will match the right machine configuration.
