Automatic Double Lines T-Shirt Bag On Roll Making Machine - Automatic Double Lines T-Shirt Bag On Roll Making Machine

Watch The Video

Automatic Double Lines T-Shirt Bag On Roll Making Machine

Max. Bag Width

2mm

Producing Length

120-500mm

Max. Producing Speed

230pcs/min

Main Technical Parameters

Model	AGTB-400X2	AGTB-500X2
Max. Bag Width	2mm	2mm
Producing Length	120-500mm	120-500mm
Max. Producing Speed	230pcs/min	190pcs/min
Film Thickness	0.006-0.025mm	0.006-0.025mm
Max. Rewinding Width	300mm	400mm
Max. Rewinding Diameter	180mm	180mm
Core Size	20-50mm	20-50mm
Total Power	18kW	18kW
Max. Upload Film Roll Size	800mm	800mm

Performance and Features

This machine is hot sealing and perforation for bag rewinding with core, which are suit for flat bottom seal bag and t-shirt bag making. Photocell applied for printed and non-print film. Designed for bag-on-roll bags with paper or PVC core production. With automatic roll changer to reach non-stop bag on roll change. High speed bottom sealing machine with perforation and paper core rewind.

Inline automatic t-shirt handle punch.
Fixed distance between sealing and perforation, no adjustments required.
Fully automatic core changing system.
A, B lines are separately controlled to minimize wastage.
Tension control by air; no tension at the sealing point therefore enhances sealing strength and quality.
Can produce t-shirt bag, vegetable bag, star sealing bag and gusseted bottom sealing bag.

Manufacturing Process

T-shirt bag on roll — seal, perforate, t-shirt cut and rewind

Unwinding

Feeds jumbo film from the unwind stand with tension control and EPC tracking for stable, wrinkle-free material supply.

Sealing & Perforation

Bottom-seals each bag and adds perforation between bags for roll or coreless formats.

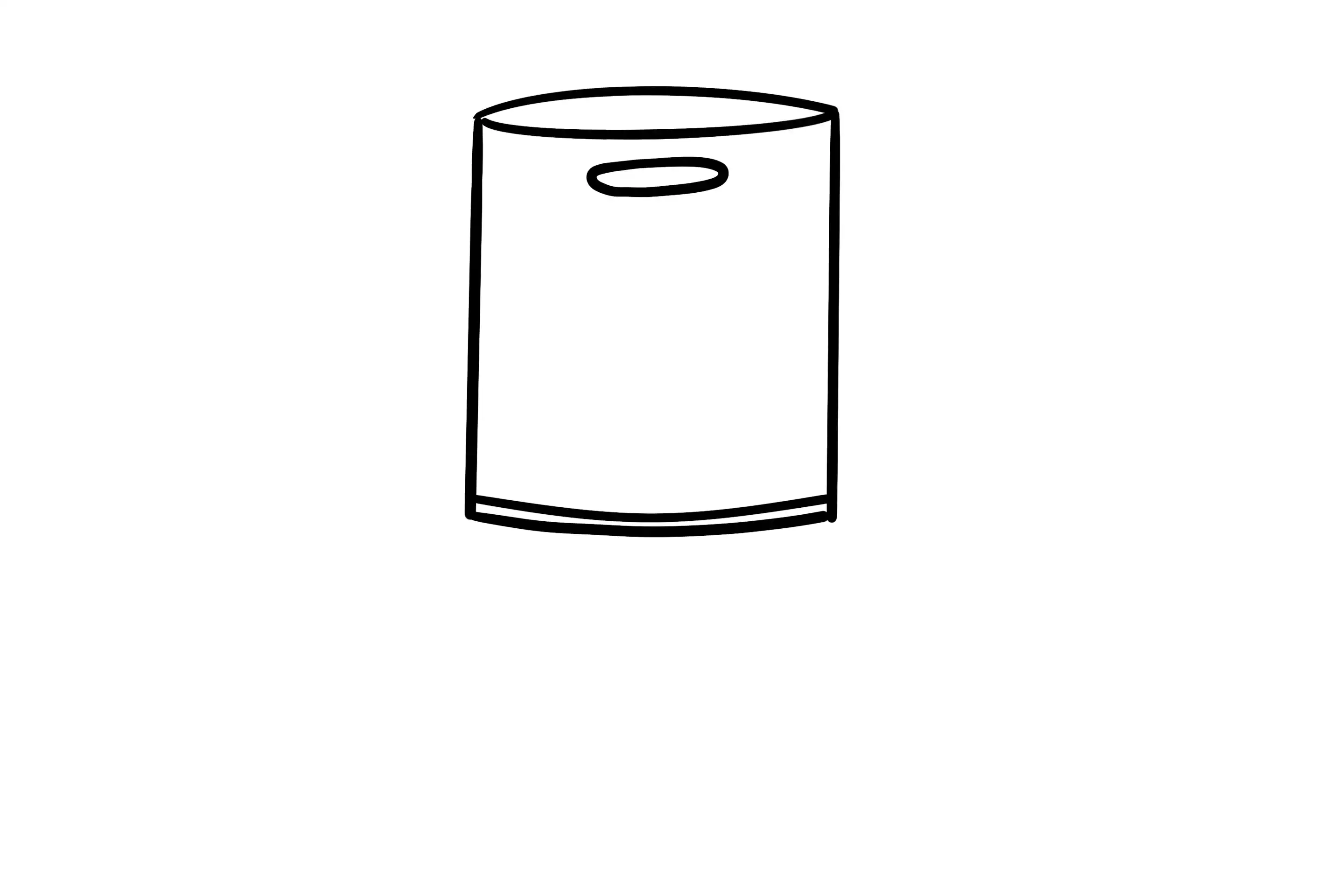

T-Shirt Cut

Die-cuts the vest-handle profile on the roll web before rewinding for T-shirt bags on roll.

Rewinding

Winds perforated bags onto paper or PVC cores with controlled tension and uniform roll geometry.
